Viewing DHCP Lease
The DHCP Leases sub tab is unavailable in the latest web UI.

From the RUCKUS One web interface, you can view the information on DHCP lease.
Complete the following steps to view the information on DHCP lease.
  1. On the navigation bar, click Venues.
    The Venues page is displayed.
  2. Click Venue Name > Devices > Switch. Alternatively, click Number displayed in the Switches column.
    The Switch tab is displayed. By default, the Graph sub tab is displayed.
  3. Click List icon.
    The List tab is displayed.
  4. Click Switch Name under the Switch column to view the incidents that have occurred on it.
    The Switches page is displayed.

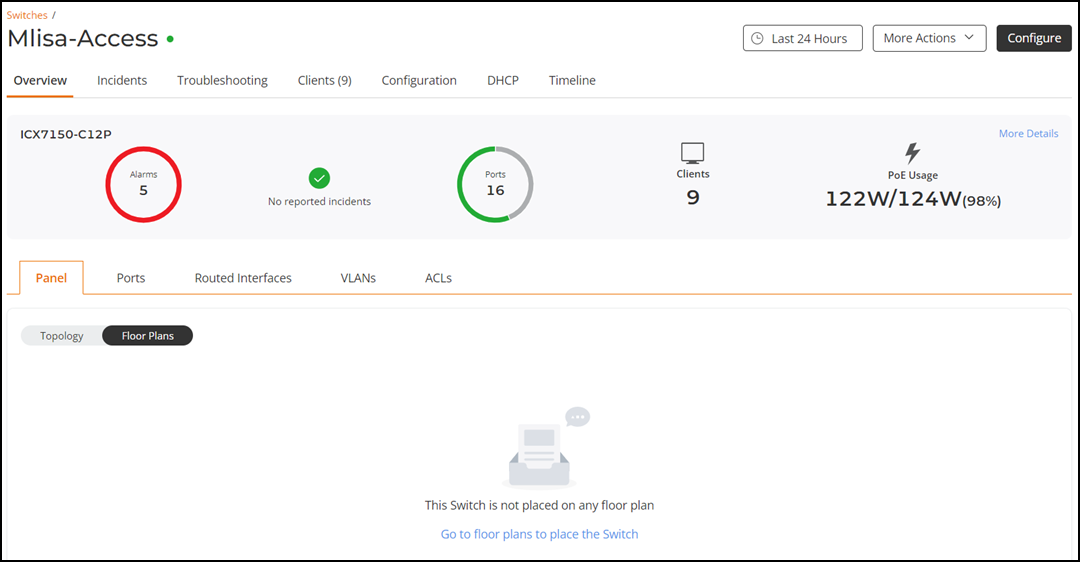

    Switches Page

  5. Select the DHCP > Leases tab.
    The Leases sub tab is displayed.

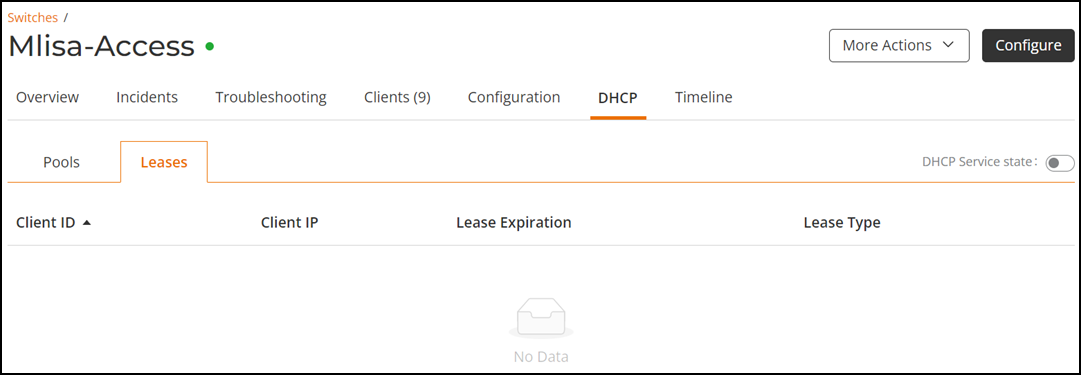

    DHCP Tab

    The Leases sub tab displays the following information:

    • Client ID
    • Client IP
    • Lease Expiration
    • Lease Type
