SNMP Agent Profile

Simple Network Management Protocol (SNMP) is one of the widely accepted protocols to manage and monitor network devices. The SNMP agent is a program that is packaged within the network element. These agents are enabled and configured in Venue/AP Group/AP for communicating with the network management system. The SNMPv2 and SNMPv3 are the two SNMP agents.

SNMPv3 mainly provides security enhancements over the earlier version, and therefore requires you to enter authorization passwords and encryption settings instead of simple clear text community strings. Both SNMPv2 and SNMPv3 can be enabled at the same time. The SNMPv3 framework provides backward compatibility for SNMPv1 and SNMPv2c management applications, allowing it to support existing management applications.

Complete the following steps to view the AAA Server profile details:

  1. From the navigation bar, Network Control > My Services.
    The My Services page is displayed.
  2. In the My Services page, click SNMP Agent tile.
    The SNMP Agent page is displayed. The SNMP Server profiles are displayed in the table. The Name column displays the SNMP Agent profiles names, SNMPv2 and SNMP v3 columns display the total number of SNMP v2 and SNMP v3 used, Venue column displays the total number of venues that use the SNMP Agent profile, and AP column displays the total number of AP's.

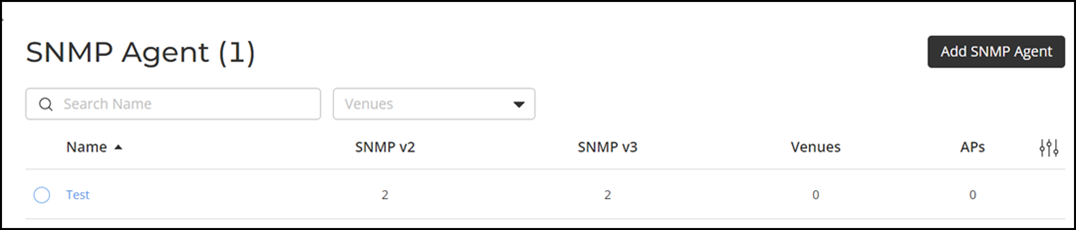

    SNMP Agent Page

  3. In the Name column, click <SNMP Agent profile name>.
    The <SNMP Agent profile name> details page is displayed. You can see the SNMP Agent profile details, the total number of SNMP v2, and SNMP v3 agents, APs, and venues that use the SNMP Agent profile.

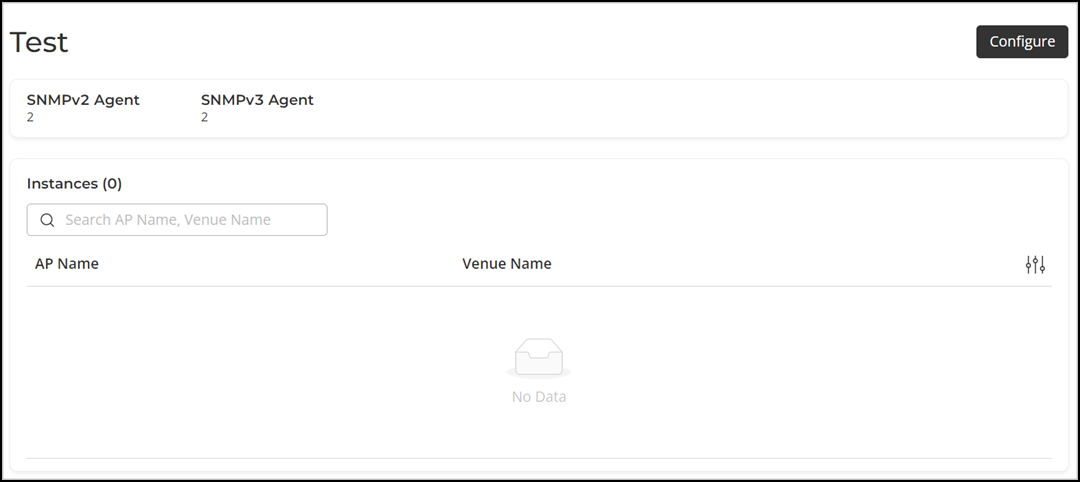

    <SNMP Agent Profile Name> Details Page

Parent topic: My Services
