Health Analytics of a Venue
The health analytics provides information
about network health by giving insights about key performance indicators (KPIs)
of the
venue. The information allows you to analyze the network health and behavior in
real time.
You can evaluate network health based on a variety of thresholds that you are allowed
to
set, called goals. For example, you can set the goal (or
threshold) to five seconds for all clients to connect to the network, and confirm
the number
of clients accomplishing the five-second goal in real time. You can thereby determine
the
metric to understand the number of clients that connect within or before time, and
the ones
that are delayed. The success rate of network elements meeting each of the goals
is
typically displayed as a percentage of the metric.
- On the navigation bar, click
Venues.The Venues page is displayed.

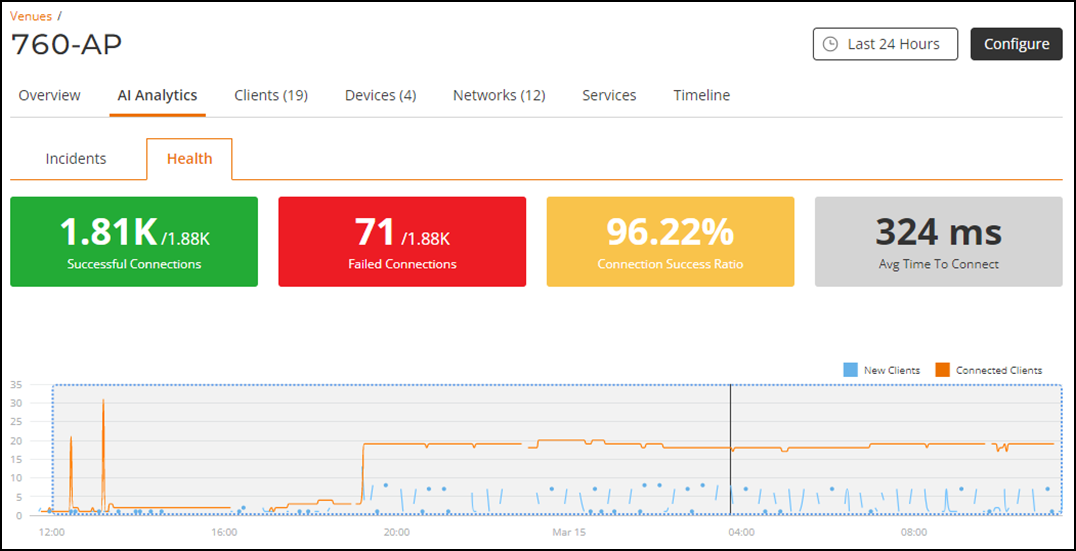

- Click to check for heath status.The Health page is displayed.
At a high level, the Health tab also displays the number of successful connections, failed connections, connection success ratio, and the average time to connect. For more information on network health and setting thresholds, refer to Health.
