Viewing Configuration

You can view the back up details such as the configuration name, the date when it was created, and the type of the backup.
Complete the following steps to view backed up switch configuration.
  1. On the navigation bar, click Wired > Switches > Switch List.
    The Switch page is displayed.
  2. Click name of a switch from the list of switches.
  3. Select the Configuration tab.
  4. Select a backup and click View.

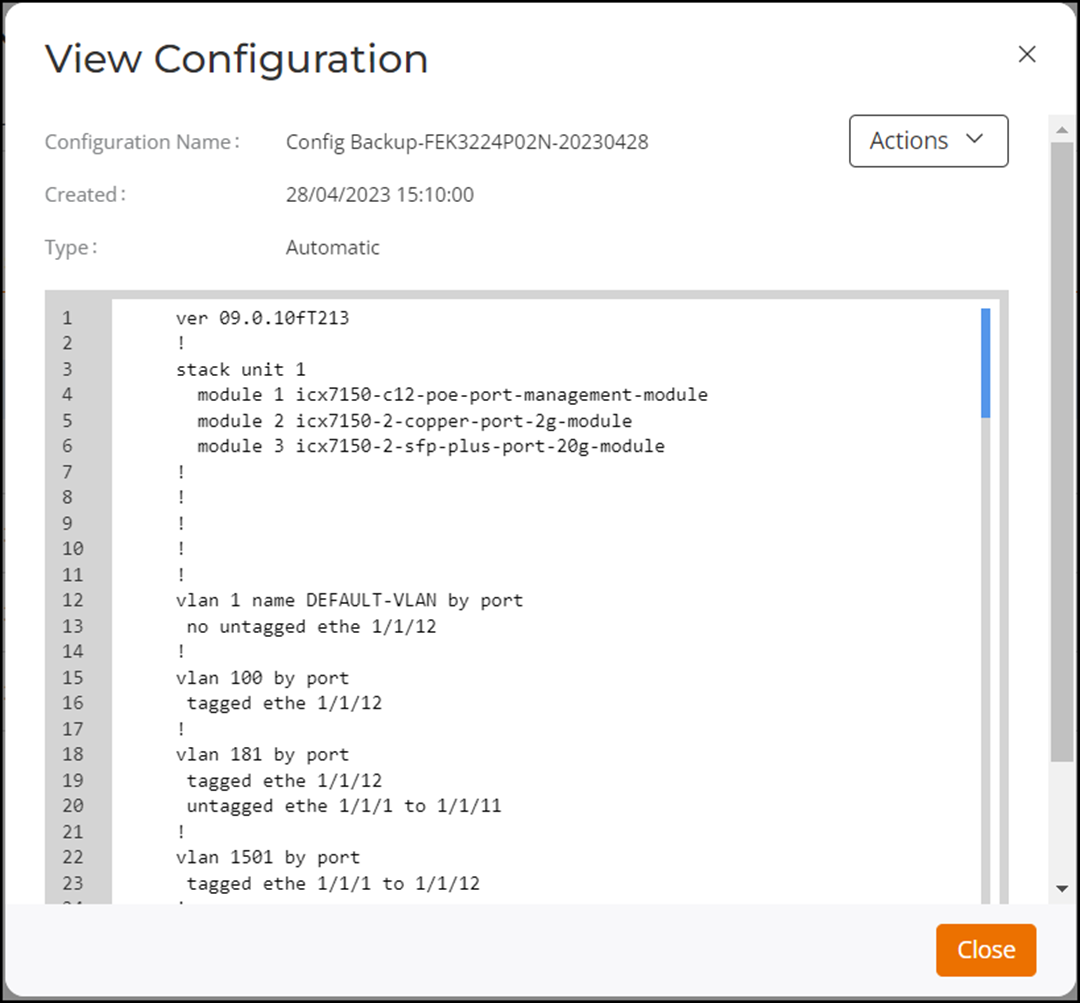

    The View Configuration page appears displaying the back up details such as the Configuration Name, Created, and Type of the backup.

    Viewing Backed Up Configuration

  5. (Optional) Click Actions to access the following options.
    • Compare: Compares the selected configuration with another configuration.
    • Restore: Restores this configuration.
    • Download: Downloads the configuration.
    • Delete: Deletes the configuration.
  6. Click Close to close the View Configuration window.
Parent topic: Configuration Management
