Troubleshooting Client Connectivity Using the DSE Agent

You can use the RUCKUS Digital System Engineer (DSE) Client Troubleshooting Agent to analyze extensive telemetry and Packet Capture (PCAP) data, identify root causes of wireless client connectivity issues, and automatically generate RCA reports with likely causes, diagnostic details, and recommended actions.
Previously, troubleshooting a wireless client connectivity issue required accessing the client's Troubleshooting page, reviewing historical records, and downloading a PCAP file when available. The DSE Client Troubleshooting Agent streamlines this process by allowing you to request an explanation for a specific client failure; your request must include the wireless client's MAC address and the date and time period of the incident. Using the provided client MAC address and time period, DSE performs the analysis and returns the results in the chat interface. Next, it performs a comprehensive root cause assessment. DSE reviews telemetry data, RUCKUS One configuration logs, and large data sources such as PCAP captures to identify likely problem areas, present key findings, and outline recommended actions. This evaluation involves substantial data processing, so generating the report can take more than 15 minutes.

DSE uses multiple sources to generate client‑level analysis in English. It supports incident types such as Authentication, Association, DHCP, EAP, and RADIUS. The DSE chat interface lists all active Client Troubleshooting processes running in the background. After a process finishes, you can open and review the generated report.

Note: DSE can start troubleshooting only from a client MAC address and can analyze issues that occurred within the past 24 hours. Within this time window, DSE groups failures into clusters and allows troubleshooting on one cluster at a time. To focus on a specific cluster, you can provide a narrower time range.

Complete the following steps to troubleshoot client connectivity issues using the DSE agent:

  1. On the RUCKUS One web interface, click the icon in the UI header.
    The RUCKUS DSE welcome message appears in an interactive pop-up window.

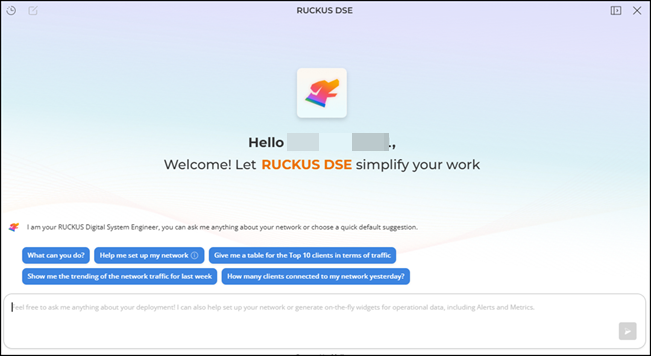

    Invoking the RUCKUS DSE

  2. In the input field, enter your question about the client. Provide the Client MAC address and the relevant date and time so that DSE can evaluate the client’s connectivity status. For example: Why did client 80:39:8c:58:64:18 experience a connection issue on 2026-01-31 at 10am?

    The DSE agent evaluates the client’s connectivity state for the specified time and generates a report. At any time, you may click Activity Details to view the basic details of your DSE request and the timeline of DSE efforts.

    The following troubleshooting statuses can appear:

    • In Progress: When DSE is analyzing the client connectivity issue
    • Success: When DSE completes the analysis and produces a report
    • Failed: When DSE cannot investigate the issue for the given client or the specified date and time

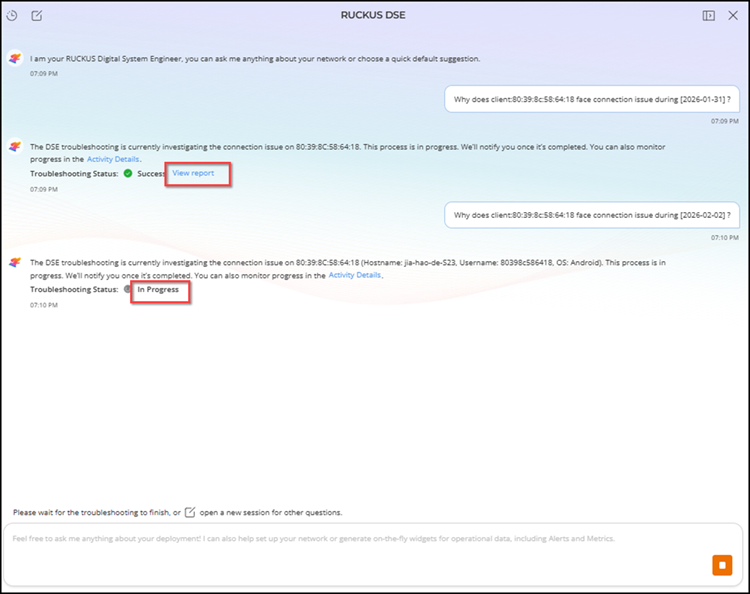

    DSE Troubleshooting Client Connectivity

  3. Click View report to open the report. The Troubleshoot Connection Issue window is displayed.

    The report summarizes the findings for the selected client and time range. The report content and scope of information depends on the DSE agent's findings. Following are examples of reports, one in which the agent found no clear failure pattern and one in which the agent found multiple failure patterns.

    In this example, the Symptoms and Observations section states that the system did not detect any failures, abnormal patterns, or conditions in the Wi‑Fi environment based on the available data. The Root Cause section confirms that the analysis did not identify any failure indicators or evidence of a specific cause for the client issue. It also notes that additional data or continued monitoring may be required before forming hypotheses.

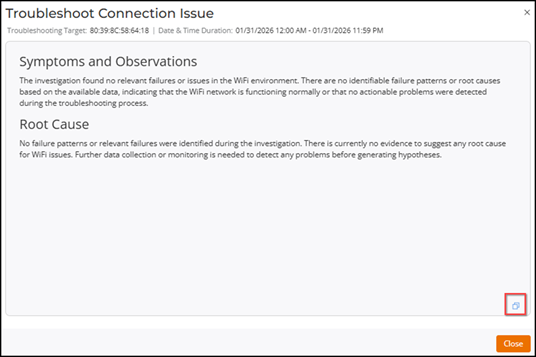

    Sample Report with No Failure Patterns

    When the DSE agent analysis reveals identifiable failure patterns, the agent includes its hypotheses, root-cause details, and recommended actions in the report. Each hypothesis has a confidence score. In some cases, the report may include two or more hypotheses. The hypotheses are sorted by confidence score, with the highest score first.

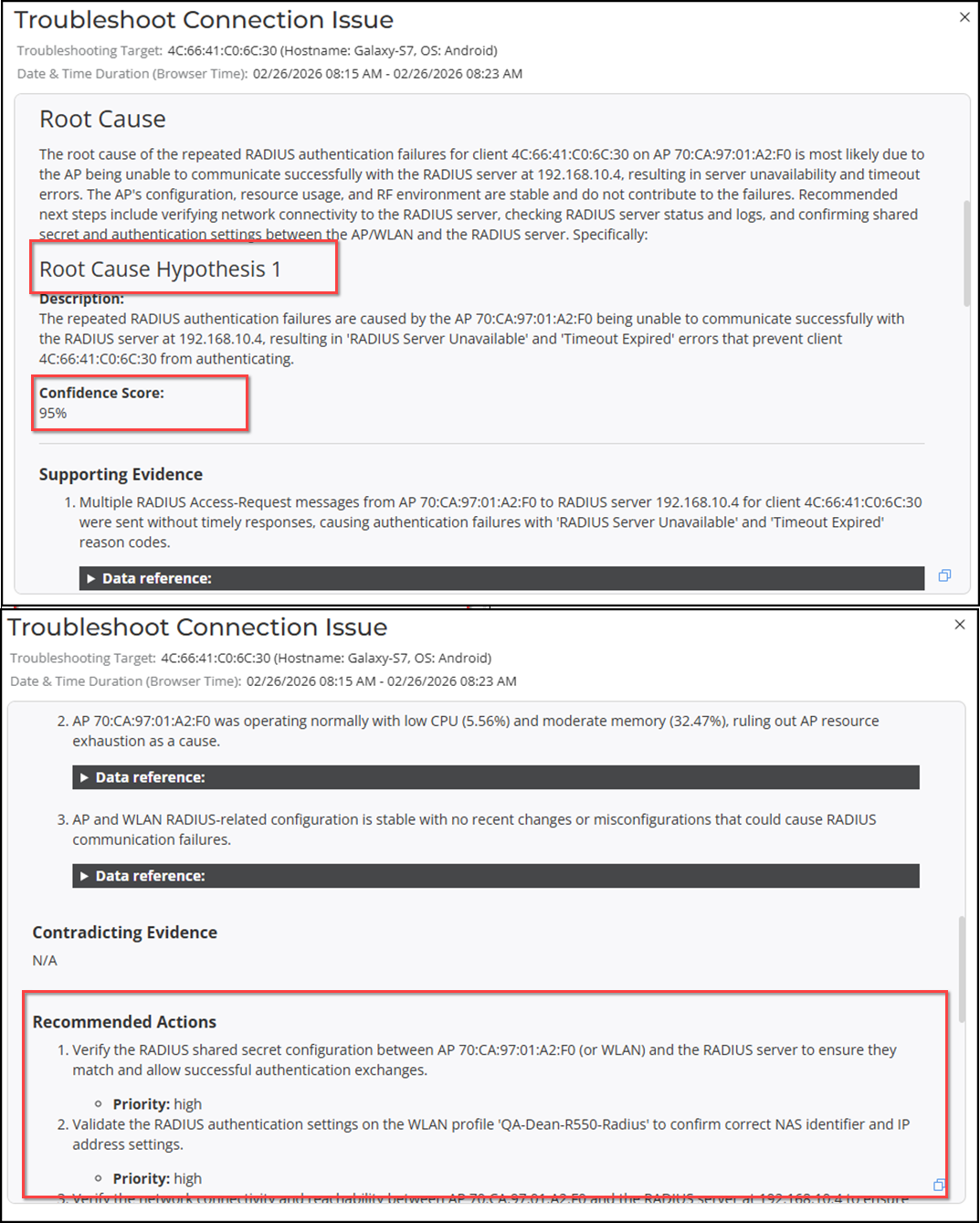

    Sample Report with Many Hypotheses - Root Cause Hypothesis 1

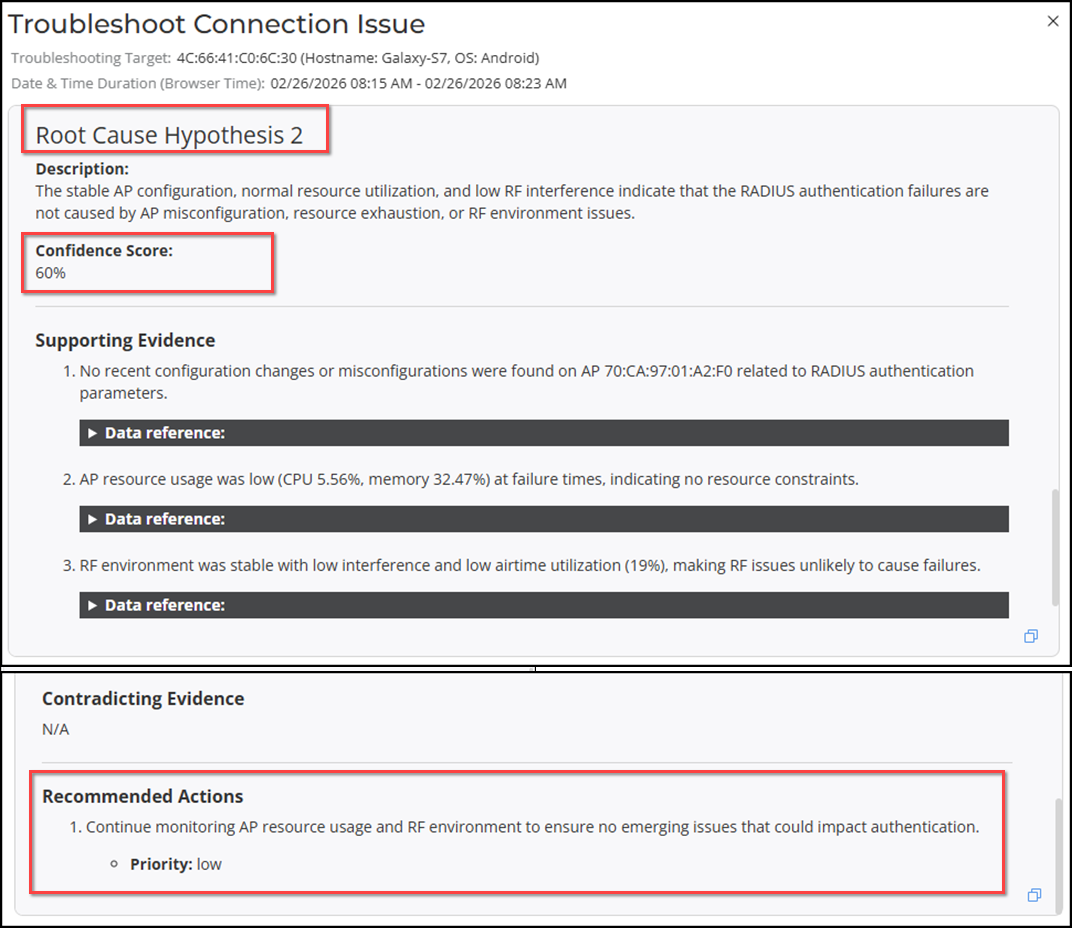

    Sample Report with Many Hypotheses - Root Cause Hypothesis 2

    You can click the icon to copy the report content (as plain text) into your local system's clipboard; you may then paste the report content into a local file of your choosing.

    You can also view the report from the Administration > Timeline > Activities page.

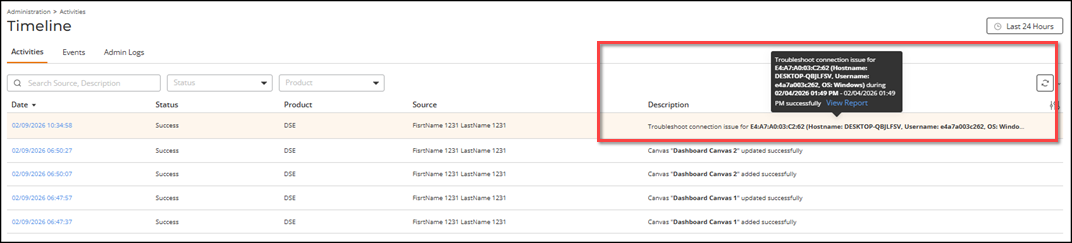

    Viewing Reports from the Activities Page
