Radius Server Profile Details

The Radius server profile for authentication, authorization, and accounting (AAA) is a network server that is used for access control. Using the Radius Server profile, you can create a network that authenticates users on a wireless device against a remote AAA server.

Complete the following steps to view the Radius Server profile details:

  1. From the navigation bar, select Network Control > Service Catalog.
    The Service Catalog page is displayed.

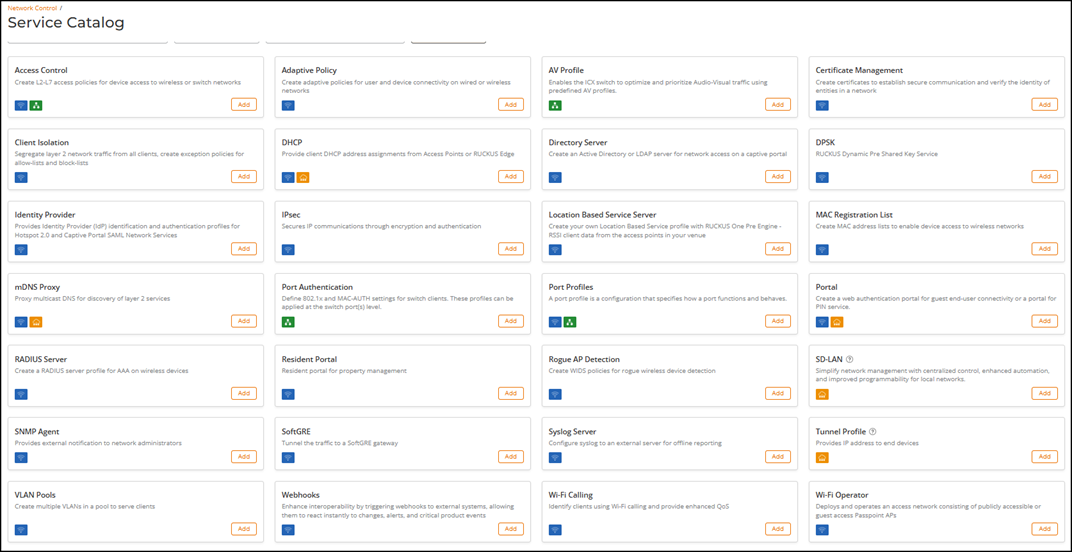

    Service Catalog

  2. Click Radius Server tile.
    The Radius Server page is displayed. The Radius Server profiles are displayed in the table. The Name column displays the Radius Server profiles names, and the Scope column displays the total number of network instances that use the Radius Server profile.

    Radius Server Page

  3. In the Name column, click <Radius Server profile name>.
    The <Radius Server profile name> details page is displayed. You can see the Radius Server profile details and the total number of network instances, network names, and network types that use the Radius Server profile.

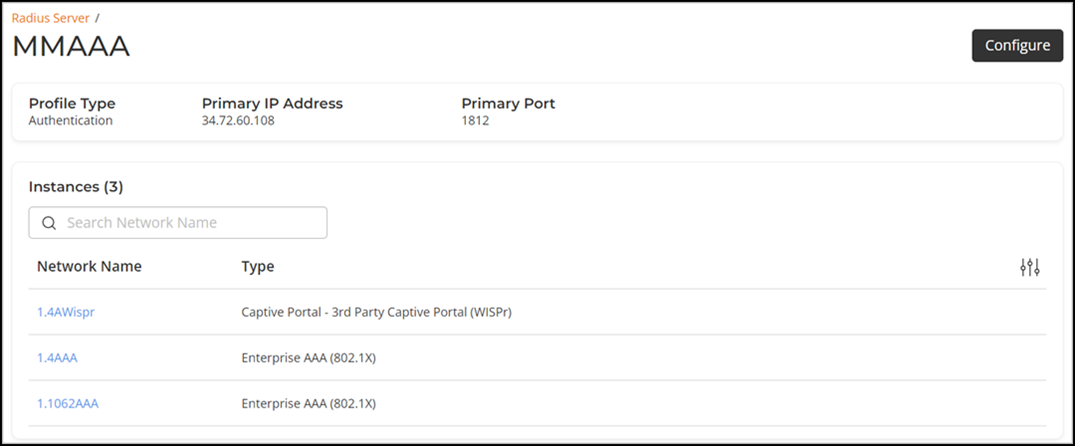

    <Radius Server Profile Name> Details Page

Parent topic: My Services
