The RUCKUS
Unleashed T670sn is a tri-band concurrent Wi-Fi 7 (IEEE 802.11be) outdoor AP
with a programmable sector antenna that delivers both narrow and wide sector coverage
on
demand.
The RUCKUS Unleashed AP supports six
spatial data streams (2x2:2 in 2.4GHz, 5GHz, and 6GHz [tri-band mode] or 2x2:2
in 2.4GHz
and 4x4:4 in 5GHz [dual-band mode]). The AP has a 5 Gbps Ethernet port (which supports
IEEE Standards 802.3af, 802.3at, and 802.3bt PoE) and a 1 GbE port (non-PoE).

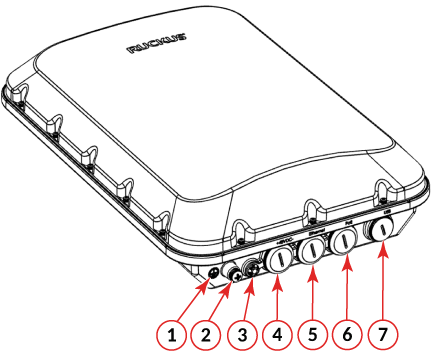

Unleashed T670sn Access
Point
- Ground symbol
- Ground screw
- LED indicators
- DC
- Ethernet
- PoE IN
- USB port
T670sn AP Front Panel
The T670sn AP features a single LED on its front
panel that can display three colors (Red, Amber, and Green).
T670sn AP Front Panel LED
| State Base Light |
Status |
Description |
| Power Negotiation Mode (Red) |
Off |
No power connected. |
| Solid Red |
AP is on and in full-power mode and boot-up is in
process. |
| Operation Preparation State (Amber) |
Blinking Amber (The light is on for 1 second and off for 1
second)
|
One of the following: System is in Configure.Me or Zero Touch
Mesh (ZTM) state. Management Gateway is lost.
|
| Solid Amber |
AP has successfully obtained an IP address, either
through DHCP or a static IP assignment. |
| Fast Blinking Amber (The light is on for 0.25 seconds and off for
0.75 seconds.
|
AP is being loaded with a configuration or firmware
update. |
| Slow Blinking Amber (The light is on for 0.5 seconds and off for 1.5
seconds)
|
Connection to the system controller is lost. |
| Service State (Green) |
Solid Green |
AP WLAN services and Controller management are operational. |
| AP WLAN has at least one client connected. |
| AP WLAN has at least one client connected and Mesh networking is
established. |
| Exception State |
Blinking between Red and Green |
AP is Factory Reset. |
| Blinking Red/Off/Green/Off/Amber/Off |
Controller is not reachable. |
