Application Overview

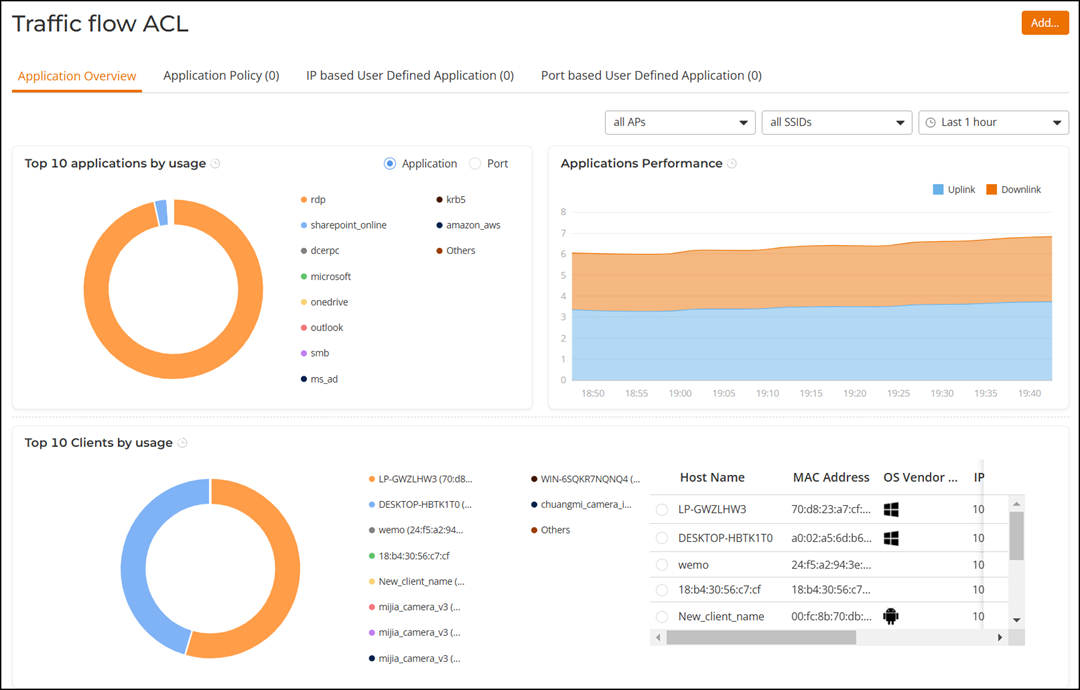

The Application
Overview tab displays the top 10 applications and the top 10 clients by usage for
the last 1-hour or 24-hour time period.
Use the menus at the top of the graphs to filter results by time period, AP Group, or SSID.
You can also choose to display applications by their application name or by port number. Pause the pointer over a section of the donut chart to display a breakdown of total, uplink, and downlink values.
The top 10 clients chart also shows the client's MAC address and percentage of total traffic for this client when you pause the pointer over the donut chart.
