DPSK Key Management

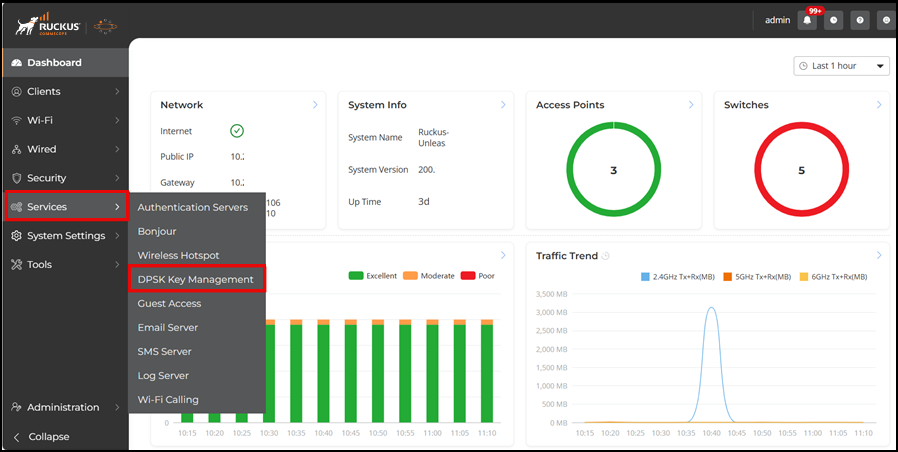

Select Services > DPSK Key Management to generate and manage administrator-generated DPSKs.

Only a DPSK-enabled WLAN can generate DPSKs. Refer to Enabling DPSK for a WLAN.

Dynamic PSK Page

The following options are available from the Dynamic PSK page:

Generate: You can create DPSKs in one batch. For more information, refer to Generating DPSKs in Batch.

Change User Name: You can edit the DPSK user name using the Edit option.

1. From the DPSK table, select a DPSK entry and click Change User Name.
2. In the Dynamic PSK Batch Generation dialog box, enter the new DPSK user name, and click Apply.

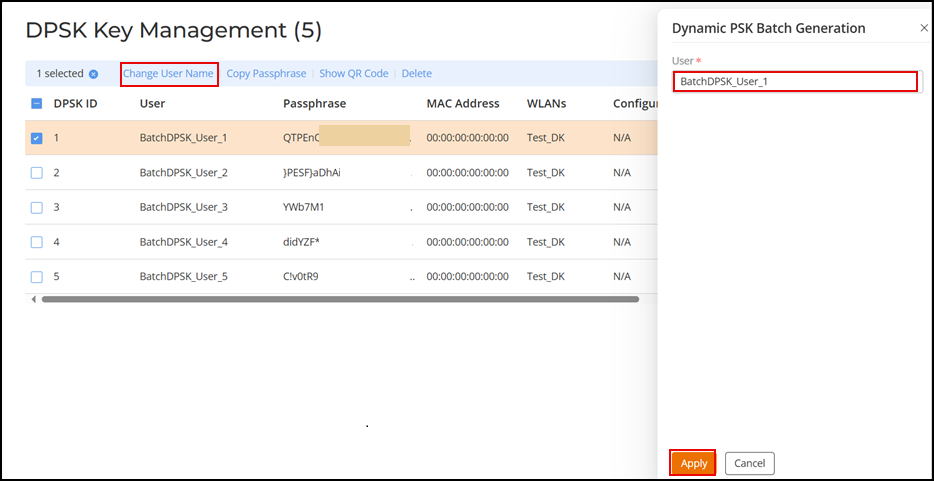

Editing the DPSK User Name

Export to CSV: Click More Actions and select Export to CSV to export all the generated DPSKs to a CSV file.

Delete All: Click Delete All to delete all DPSK entries.

You can select the DPSK from the list and perform the below:

• Copy Passphrase: From the DPSK table, select a DPSK entry and click Copy Passphrase to automatically copy a passphrase.

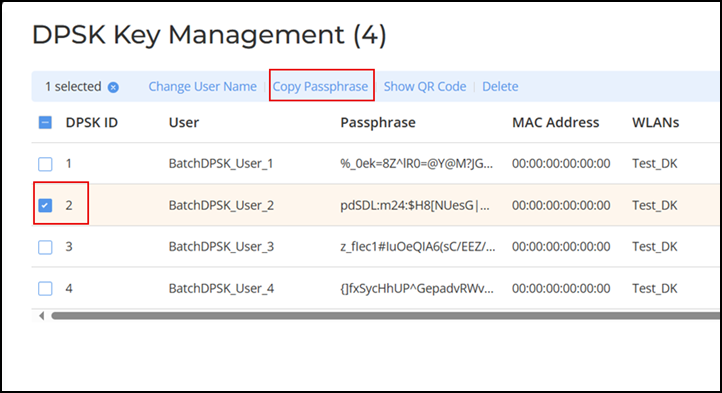

  Copying the Passphrase



• Show QR Code: A WLAN-supported DPSK has the Show QR Code option to join a Wi-Fi network. From the DPSK table, select a DPSK entry and click Show QR Code to display the QR Code. You can Print, Save or scan the QR code using a smartphone camera.

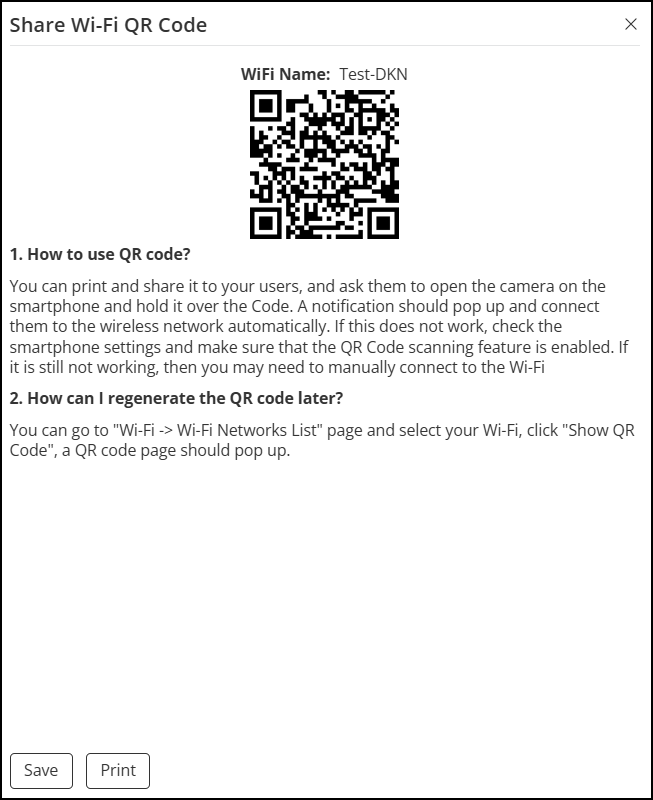

  QR Code Page



• Delete: From the DPSK table, select a DPSK entry and click Delete to delete the DPSK entry form the list.
