Backup and Restore

Select Administration > Backup & Restore to configure options for backing up your current configuration, restoring the configuration from a previous backup file, or restoring the Master AP to factory settings.

Complete the following steps to back up and restore settings from a backup file.

  1. Select Administration > Backup & Restore.
  2. To back up the current system configuration, select the System Backup tab and click Back up.

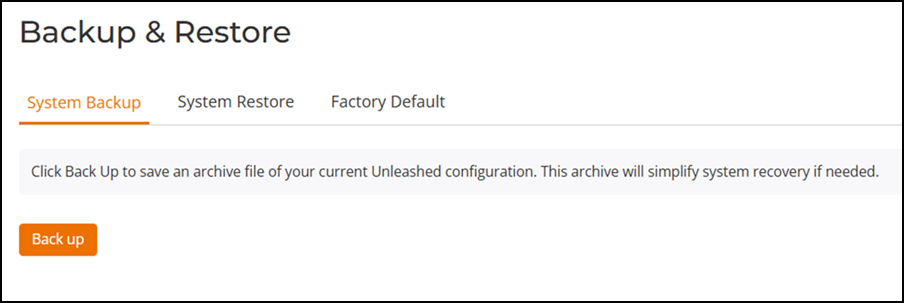

    Configuring System Backup

    The backup file is automatically saved to your local computer.

    Note: The backup is a small encrypted file with a .bak extension.

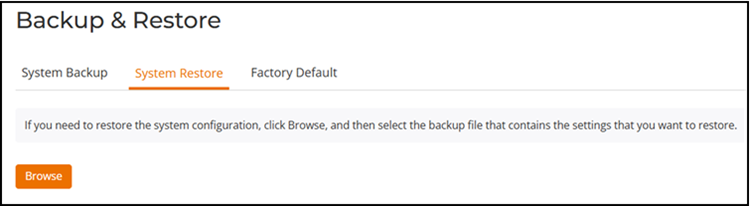

  3. To restore the system configuration from a previous backup file, select the System Restore tab.
  4. Click Browse to select your backup file and click Open.
  5. After the .bak file has been uploaded to RUCKUS Unleashed, select one of the restore options for your RUCKUS Unleashed network:
    • Restore everything.
    • Restore everything, except system name, IP address settings and super-admin name & password.
    • Restore only WLAN settings, access control list, roles, users, country code and system time (use this as a template for different sites).
    • Restore ICX Switches List.

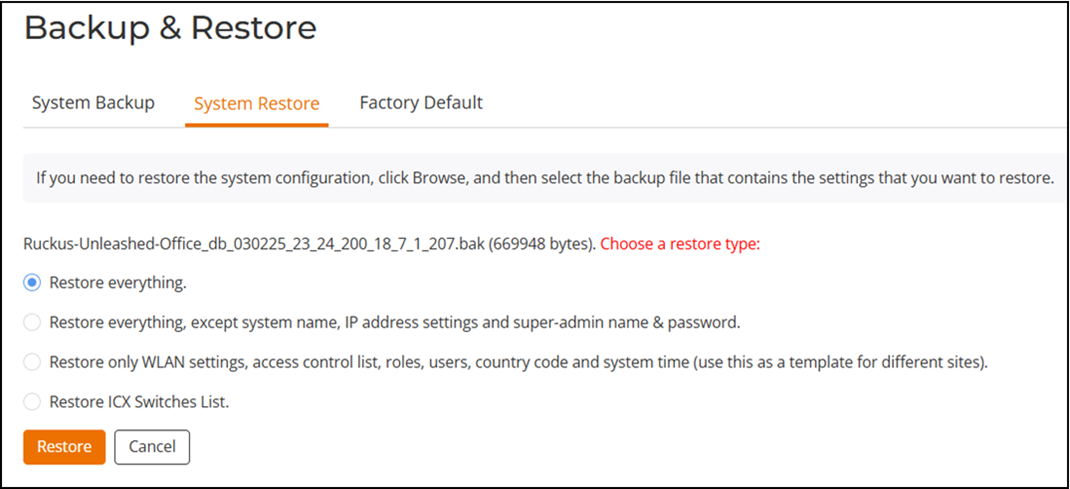

Configuring Restore Options

Choosing a Restore Type

In this section:

  1. Restore to Factory Settings
  2. Rediscovering the AP on the Network
