Generating DPSKs in Batch

You can create DPSKs at once (from 1 through 50) or upload a CSV file with the custom DPSKs.
Complete the following steps to generate DPSKs.
  1. Go to Services > DPSK Management.

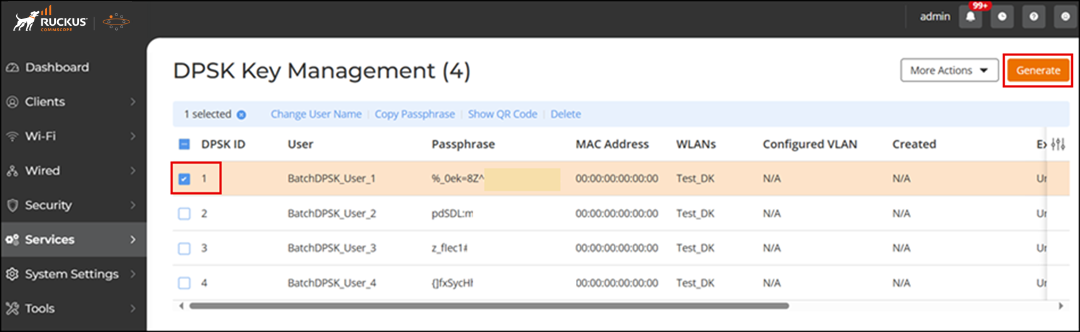

    Dynamic PSK Page

  2. Click Generate.

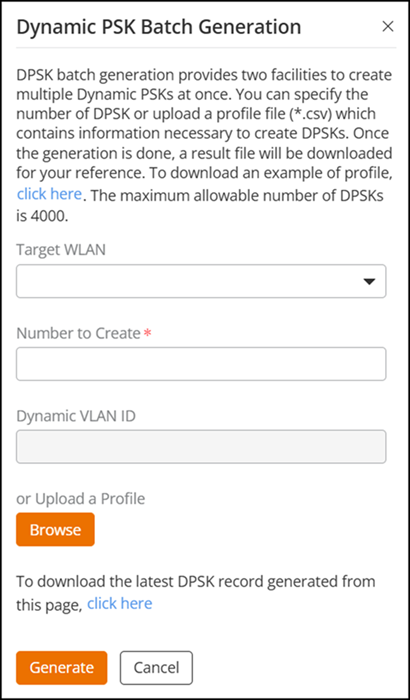

  3. In the Dynamic PSK Batch Generation dialog box, enter the following fields:
    • Target WLAN: Select the WLAN to which the DPSKs will be applied. (Only WLANs with the DPSK enabled are listed.)
    • Number to Create: Enter the number of DPSKs you want to generate (ranging from 1 through 50; the default value is 5).
    • Dynamic VLAN ID: Enter a valid VLAN ID, ranging from 1 through 4094 (if Dynamic VLAN ID is enabled for this WLAN).
    • Upload a Profile: Refer to Uploading a Dynamic PSK Profile.
  4. Click Generate to generate the requested number of DPSKs.

    Generating DPSKs Automatically

    You can click the click here link to download the latest DPSK record that contains the generated DPSKs.
Parent topic: DPSK Key Management
