Before adding an AP to your RUCKUS Unleashed network, you must verify that the RUCKUS AP
that you are adding to your network is supported by RUCKUS Unleashed.
From the main menu, click Wi-Fi. Under Access
Points, the following tabs are available:
| AP
List |
Provides AP information such as AP name,
status, model, IP address, MAC address, and so on.
Refer to AP List Overview. |
| AP
Group List |
Provides AP Group information such as AP
Group name, AP members, networks, incidents, and clients. Refer to Working with AP Groups. |
AP List Overview
Navigating to the
AP
List tab allows you to view the following
information about all APs associated with your RUCKUS Unleashed network.
| AP
Name |
The name of the AP. This is a sortable
field. |
| Role |
Specifies whether the AP is a member or
Master AP. |
| Status |
The current status of the AP (for example,
Operational). This is a sortable field. |
| AP
Group |
The AP Group name if the AP belongs to an
AP Group. This is a sortable field. |
| Model |
The AP model. This is a sortable
field. |
| IP
Address |
The IP address assigned to the AP. This is
a sortable field. |
| MAC
Address |
The unique media access control (MAC)
address, also called physical address, network
interface of the AP. This is a sortable
field. |
| PoE Operating
Mode |
The Power over Ethernet (PoE) operating
mode configured and managed on the AP. |
| Up
Time |
By default, displays the duration (in days
and hours) since when the AP has been providing
service. By monitoring the uptime, you can
determine if the AP has experienced any unexpected
reboots, which helps in diagnosing and addressing
underlying problems. This is a sortable
field. |
| AFC
Status |
The status of the AP daily check-in with
the Automated Frequency Coordination (AFC) system
(Passed or Failed). |
| AFC
Power State |
The power state of the AP if supported by
Automated Frequency Coordination (AFC) (Standard
or Low). |
| Channel |
The specific channels on which the AP radio
is broadcasting. Note that columns are included if
at least one associated AP supports the frequency.
For example, if all of your APs are dual-band (2.4
GHz and 5 GHz), then the 6 GHz column will not
appear).- 2.4GHz: 2.4 GHz overlapping Wi-Fi channel
- 5GHz: 5 GHz non-overlapping Wi-Fi channel
- 6GHz: 6 GHz non-overlapping Wi-Fi channel
|
| Firmware Version |
The firmware version of the AP software.
This is a sortable field. |
| Serial Number |
The serial number of the AP. This is a
sortable field. |

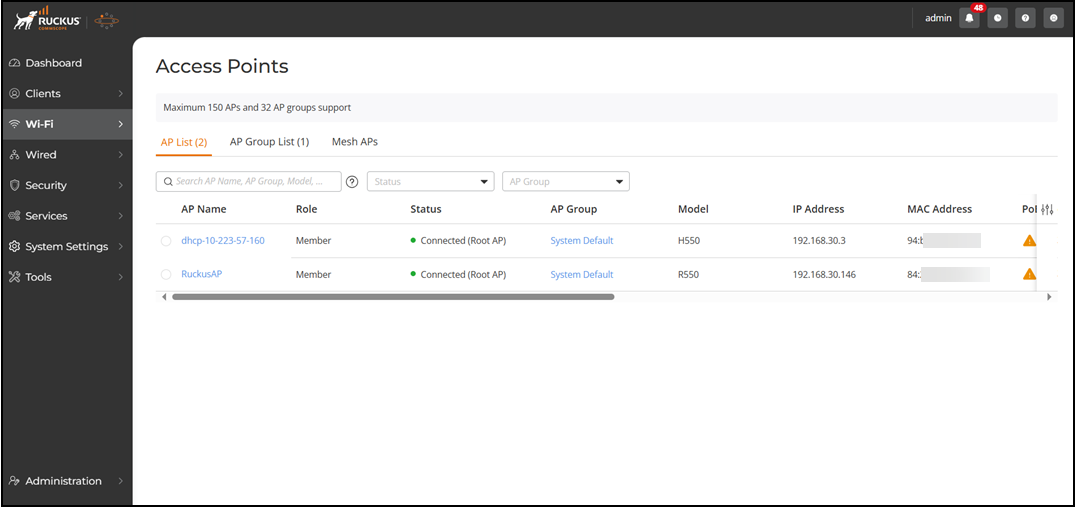

Access Points:
AP List Tab
You can
customize which fields appear in the AP List
table by clicking the
icon and selecting or deselecting
the desired column names. Optionally, you can click Reset to
default to have the default subset of columns
appear in the AP List table.
You can
search the results using the Search field. Enter the AP name, model, IP
address, MAC address, tags, or serial number in the Search field. All matching APs are
displayed.
You can filter the list of
APs using one or more of the drop-down lists above the table, Status and AP Group.
