Setup Using the Mobile App

To perform setup using the RUCKUS Unleashed mobile app, download the iOS or Android app from your app store.

As soon as the AP is powered on and connected to the local network, it boots up and begins broadcasting a temporary unencrypted WLAN named "Configure.Me-xxxxxx" from both radios.

  1. Using your client's Wi-Fi connection settings, select and associate to the "Configure.Me-xxxxxx" WLAN.
  2. Instructions for Unleashed mobile app

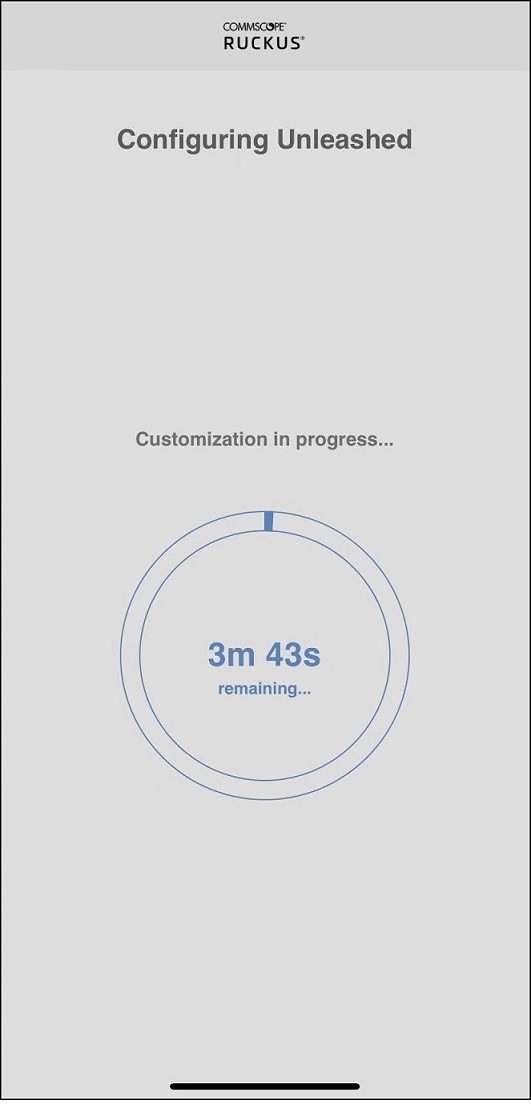

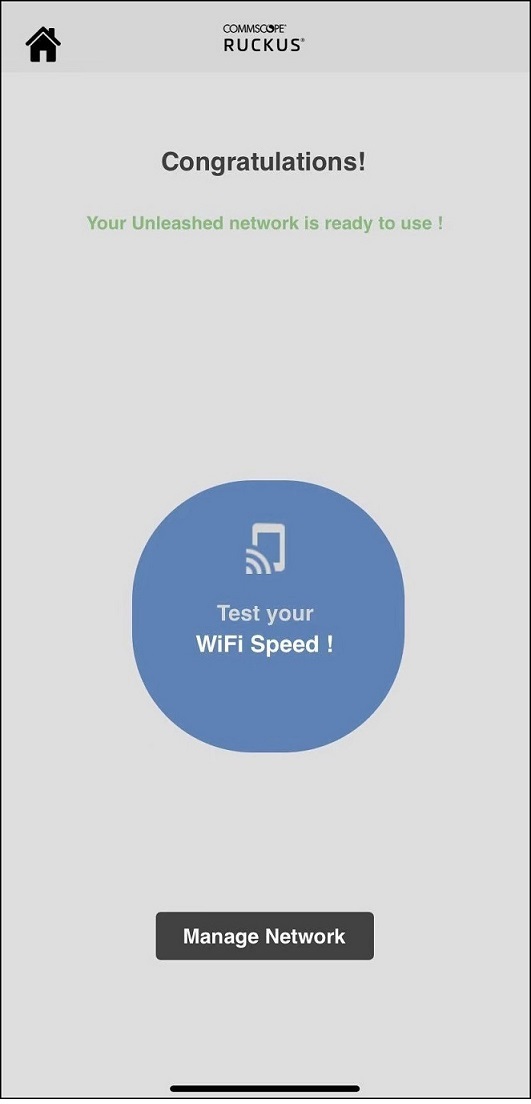

    Launch the app, and follow the on-screen instructions to configure your RUCKUS Unleashed networks.

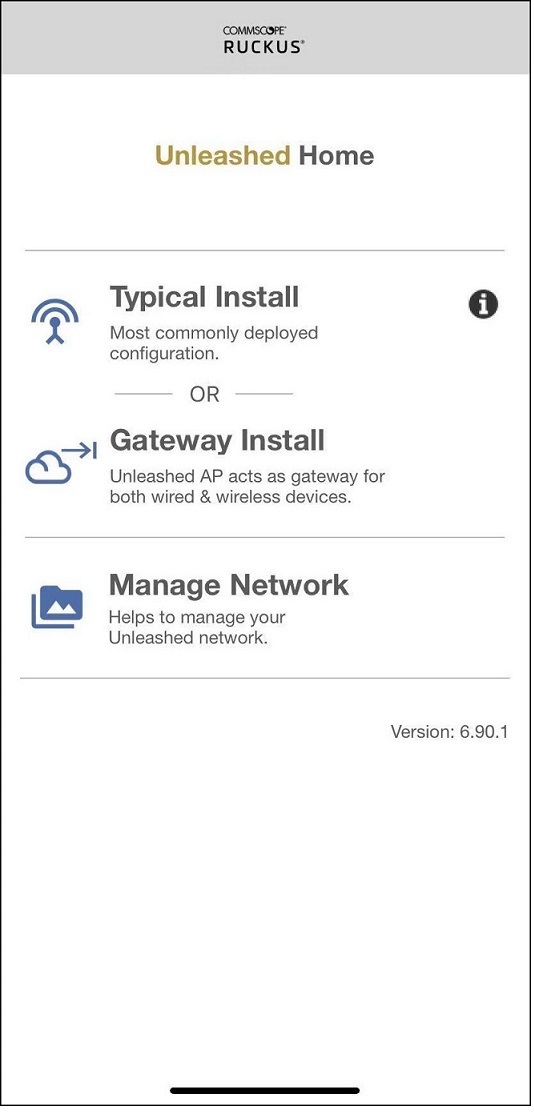

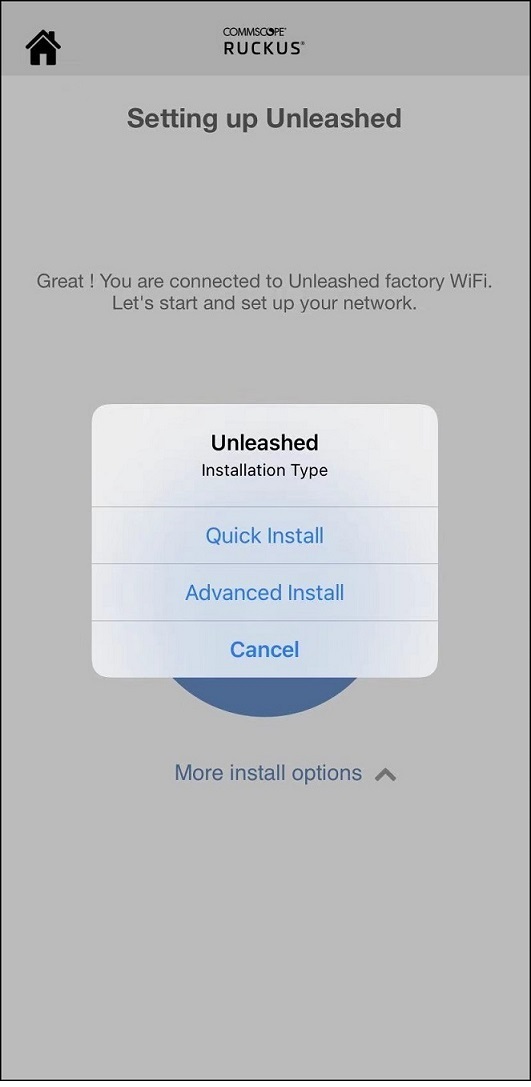

    For a quick installation, click Typical Install > Start > Quick Install.

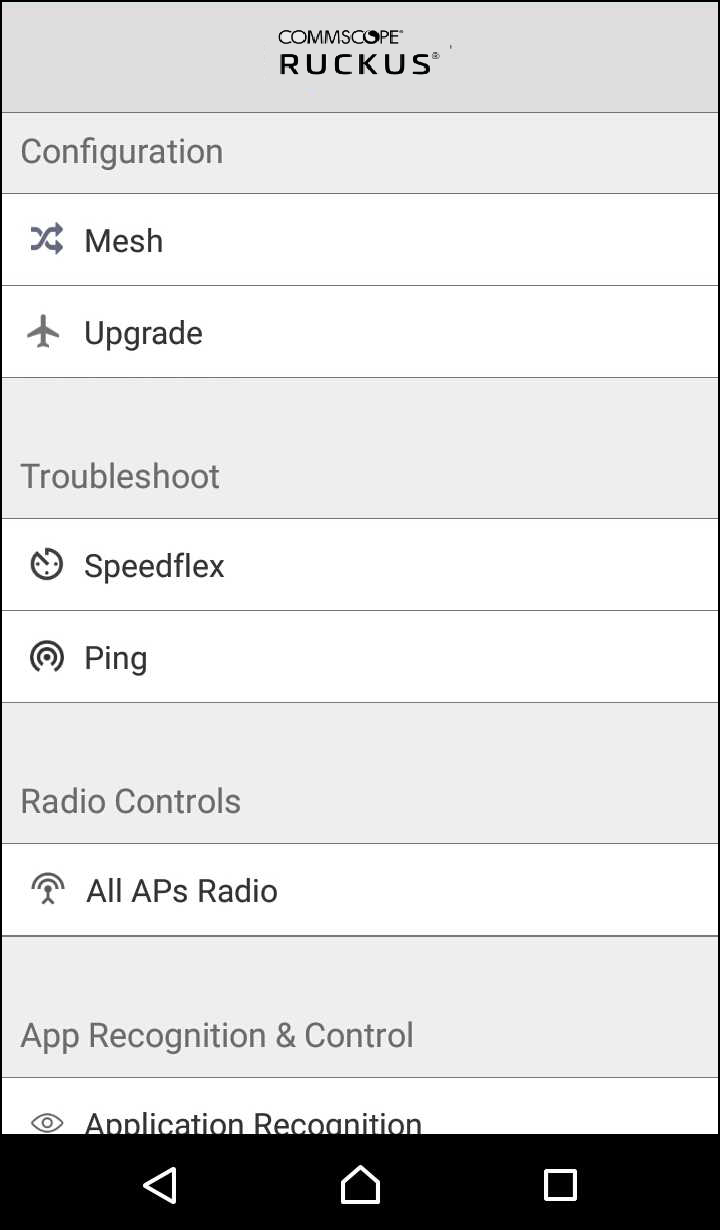

    RUCKUS Unleashed Mobile App for iOS and Android

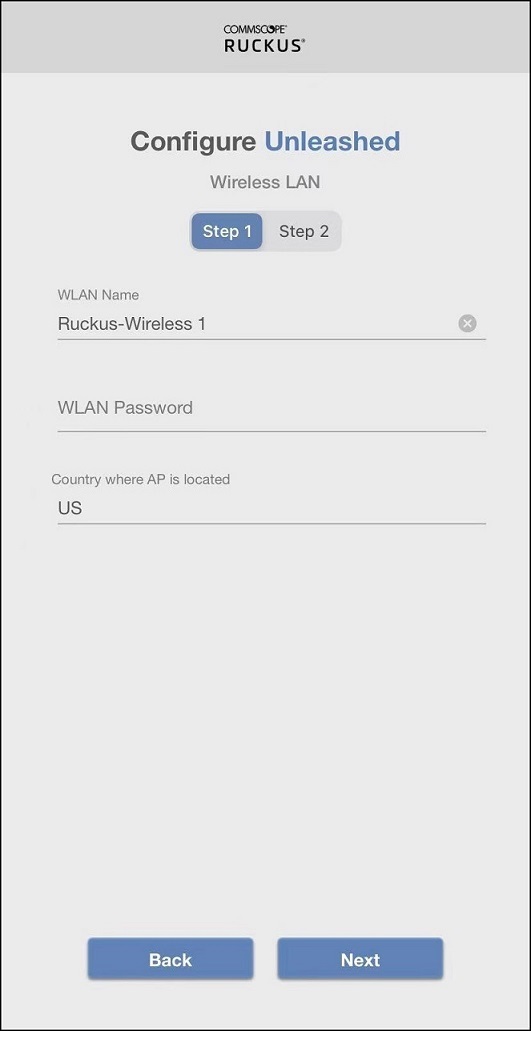

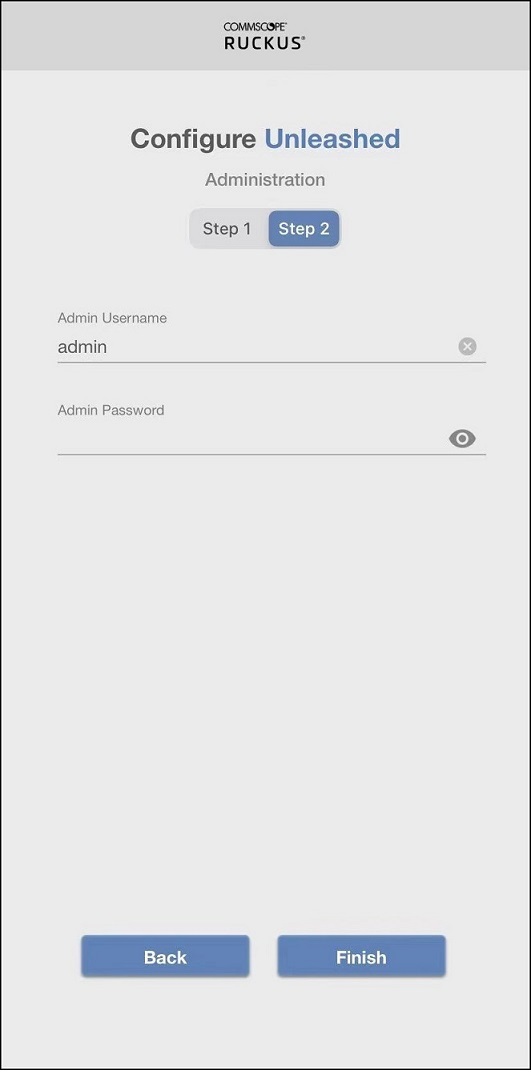

    To configure RUCKUS Unleashed, in the Wireless LAN page, enter WLAN name, password, and the country where the AP is located, and click Next. In the Administration page, enter admin username and password, and click Finish.

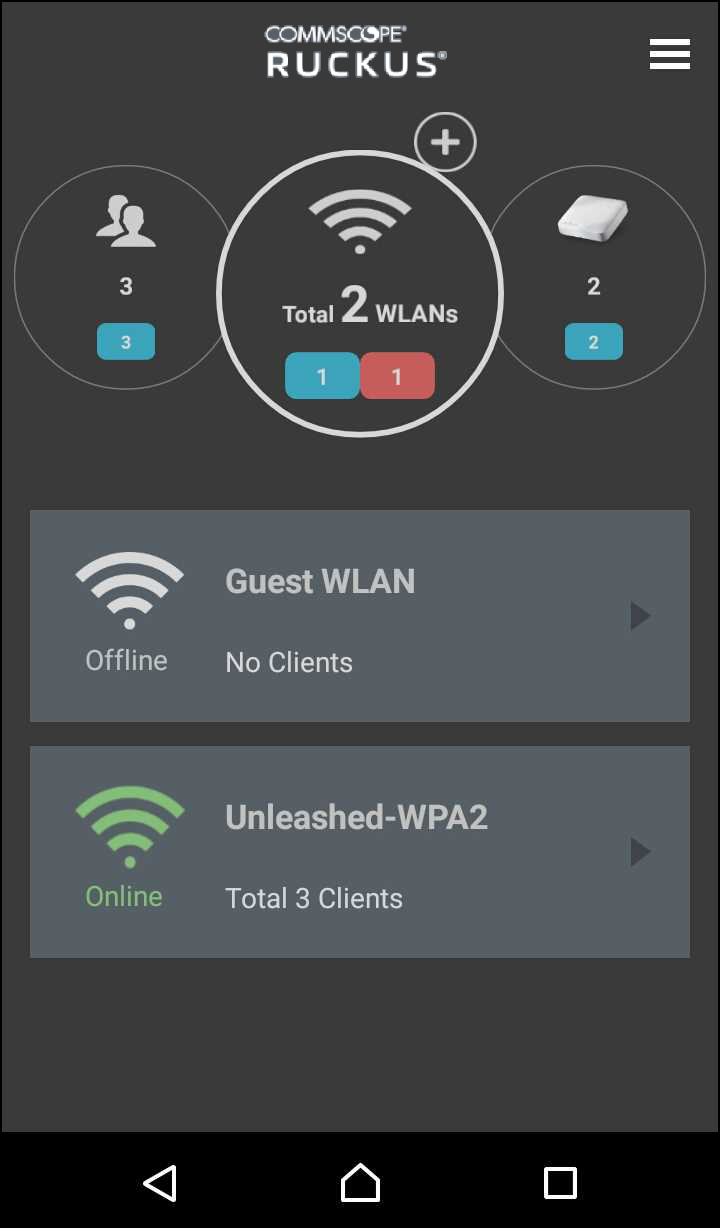

    Configuring RUCKUS Unleashed from the Mobile App for iOS and Android

Parent topic: Configuring the Network
