802.1X WLAN Survivability

The WLAN Survivability feature allows 802.1X end users to continue to authenticate successfully and access the internet even when the external RADIUS server is unreachable for a configurable period of time.

With the WLAN Survivability feature enabled, the RUCKUS device caches the user's credentials for reuse in the event of disconnection from the AAA server.

Note: This feature is unavailable when a Backup RADIUS server is configured.
Note: Enabling this feature on the Unleashed web interface will not work unless the relevant configuration is also performed on the RADIUS server. This procedure assumes the reader has a high level of competence in RADIUS customization. Specifically, the user will need the ability to write scripts or code to recognize our RUCKUS RADIUS attributes and respond with the correct values by properly calculating the password and challenge strings.

Complete the following steps to configure WLAN Survivability for 802.1X WLAN clients.

  1. Select Wi-Fi > Wi-Fi Networks > Wi-Fi Network List and click Add. Alternatively, click the checkbox for the specific Wi-Fi network that you want to configure, then click Edit. The Edit Wi-Fi Network page is displayed.
  2. For Name, enter a name for the Wi-Fi network.
  3. For Usage Type, select Standard.
  4. For Authentication Method, select 802.1X EAP.
  5. For Encryption Method, select WPA3.
  6. For Authentication Server, select a RADIUS authentication server from the list or click Add to create a new RADIUS authentication server.
  7. For WLAN Survivability, select Enabled.
  8. For Cache Time, enter a value in hours (from 1 through 128) to cache the user credentials.
  9. (Optional) For Accounting Server, select a RADIUS accounting server from the list or click Add to create a new RADIUS accounting server.
  10. Click Apply to save your changes.

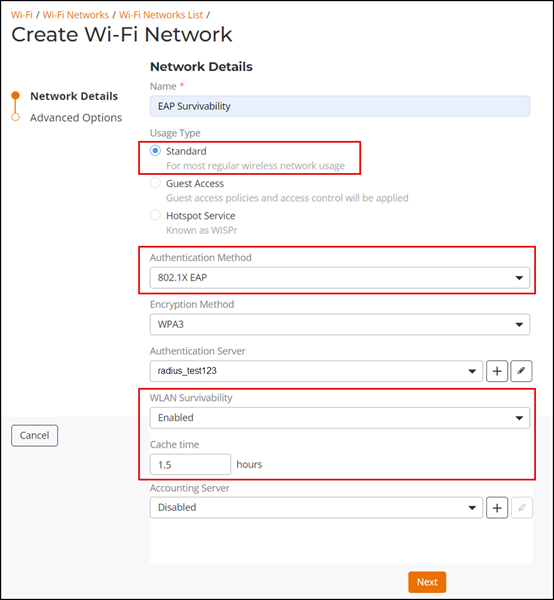

    Enabling 802.1X EAP WLAN Survivability

    The RUCKUS controller will send the RADIUS request with the attribute: RADIUS_RUCKUS_AUTH_SURVIVABILITY = 15 after enabling the survivability feature.

    The RADIUS server must have the capability of recognizing the request and answering with the following attributes in the access-accept message: RADIUS_RUCKUS_USER_NAME = 16 , /*Survivability-Usr-Name*/ RADIUS_RUCKUS_PASSWORD_NT_HASH = 17 /*Survivability-MD5-NT-Passwd*/.

    How the RADIUS server calculates the two new attributes:

    • RADIUS_RUCKUS_USER_NAME: This is the user name created in the RADIUS server.
    • RADIUS_RUCKUS_PASSWORD_NT_HASH: This is a 32 byte binary data value. RADIUS uses the following steps to create this attribute:
      1. The server generates a Windows NT hash of the user’s password using the MS_CHAPv2 algorithm.
      2. It uses the first random 16 bytes as an authenticator and the shared secret to encrypt the data generated by the previous step via MD5 as a user password does (refer to RFC 2865, Chapter 5.2). The following is a code snippet of the user password encryption algorithm:
        struct radius_attr_hdr *
radius_msg_add_attr_user_password(struct radius_msg *msg,
				  TAC_U8 *data, size_t data_len,
				  TAC_U8 *secret, size_t secret_len)
{
	TAC_U8 buf[128];
	int padlen, i, pos;
	MD5_CTX context;
	size_t buf_len;
	TAC_U8 hash[16];

	if (data_len > 128)
		return NULL;

	memcpy(buf, data, data_len);
	buf_len = data_len;

	padlen = data_len % 16;
	if (padlen) {
		padlen = 16 - padlen;
		memset(buf + data_len, 0, padlen);
		buf_len += padlen;
	}

	MD5Init(&context);
	MD5Update(&context, secret, secret_len);
	MD5Update(&context, msg->hdr->authenticator, 16);
	MD5Final(hash, &context);

	for (i = 0; i < 16; i++)
		buf[i] ^= hash[i];
	pos = 16;

	while (pos < buf_len) {
		MD5Init(&context);
		MD5Update(&context, secret, secret_len);
		MD5Update(&context, &buf[pos - 16], 16);
		MD5Final(hash, &context);

		for (i = 0; i < 16; i++)
			buf[pos + i] ^= hash[i];

		pos += 16;
	}

	return radius_msg_add_attr(msg, RADIUS_ATTR_USER_PASSWORD,
				   buf, buf_len);
}
      3. Replace msg->hdr->authenticator with that first 16 bytes of random data.
      4. Place the results into the second 16 bytes.
