T670 Omni AP

The RUCKUS Unleashed T670 Omni is a tri-band concurrent Wi-Fi 7 (IEEE 802.11be) outdoor AP that supports six spatial data streams (2x2:2 in 2.4GHz, 5GHz, and 6GHz [tri-band mode] or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz [dual-band mode]).

The RUCKUS T670 Omni is a high-end, tri-band, Wi-Fi 7 outdoor access point. It is designed for high-density environments. The RUCKUS Unleashed AP includes a 5 Gbps Ethernet port (which supports IEEE Standards 802.3af, 802.3at, and 802.3bt PoE), and a 1 GbE port (non-PoE).

This section describes the physical features of the RUCKUS Unleashed T670 Omni AP.

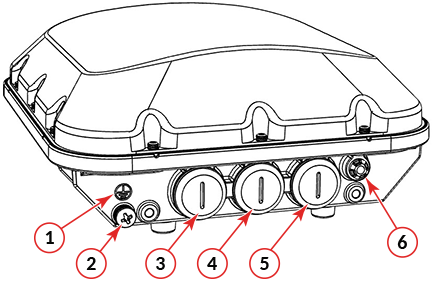

Unleashed T670 Omni Access Point

  1. Ground symbol
  2. Ground screw
  3. PoE IN
  4. Ethernet
  5. DC
  6. LED indicators

T670 Omni AP Front Panel

The T670 Omni AP features a single LED on its front panel that can display three colors (Red, Amber, and Green).

T670 Omni AP Front Panel LED

State Base Light Status Description
Power Negotiation Mode (Red) Off No power connected.
Slow Blinking Red

(The light is on for 0.5 seconds and off for 1.5 seconds)

 AP is on and in IEEE 802.3af low-power mode.
Solid Red AP is on and in full-power mode and boot-up is in process.
Operation Preparation State (Amber) Blinking Amber

(The light is on for 1 second and off for 1 second)

 One of the following:

System is in Configure.Me or Zero Touch Mesh (ZTM) state.

Management Gateway is lost.
Solid Amber AP has successfully obtained an IP address, either through DHCP or a static IP assignment.
Fast Blinking Amber

(The light is on for 0.25 seconds and off for 0.75 seconds.

 AP is being loaded with a configuration or firmware update.
Slow Blinking Amber

(The light is on for 0.5 seconds and off for 1.5 seconds)

 Connection to the system controller is lost.
Service State (Green) Solid Green AP WLAN services and Controller management are operational.
AP WLAN has at least one client connected.
AP WLAN has at least one client connected and Mesh networking is established.
Exception State Blinking between Red and Green AP is Factory Reset.
Blinking Red/Off/Green/Off/Amber/Off Controller is not reachable.
