Configuring Guest Subnet Restrictions
By default, Guest Pass users are
automatically blocked from the network subnet (format: A.B.C.D/M) and the subnet
of the AP
to which the guest user is connected.
If you want to create additional rules that allow or restrict guest users from specific subnets, use the Restricted Subnet Access sub-tab.
You can create up to 21 subnet access rules, which will be enforced on both the Master AP and all connected member APs.
Complete the following steps to create a guest access rule for a subnet.
Difference in UI label for Unleashed and RUCKUS
Blue
- From the main menu, select and click Add to create a
new guest wireless network or click the checkbox for the specific guest wireless
network that you want to configure, then click Edit to modify an
existing guest wireless network.
Unleashed
- For Usage Type, ensure that Guest Access is selected.
- Step through the Create Wi-Fi Network or Edit Wi-Fi Networkwizard until you reach the Advanced Options page.

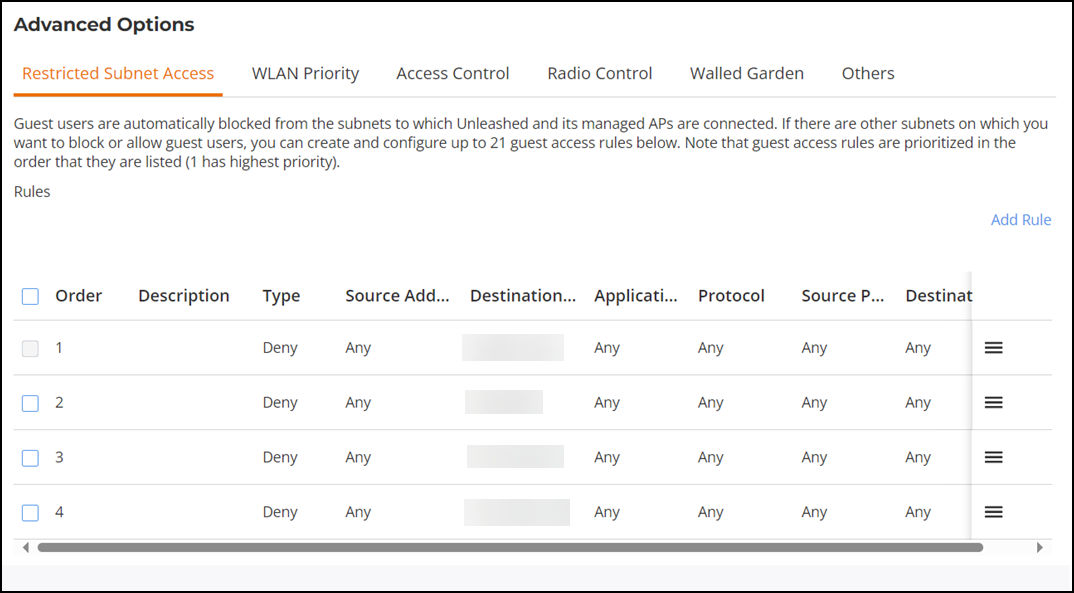

- Click the Restricted Subnet Access sub-tab.
- Click Add Rule to create a new subnet restriction rule. In the Add Rule sidebar, enter the parameters that define the access rule.
- For Order, select a precedence order from the drop-down list.
- (Optional) For Description, enter a description for the access rule that you are creating.
- For Type, select Deny if this rule will prevent guest users from accessing certain subnets, or select Allow if this rule will allow them access.
- For Source Address, enter the IP address and subnet mask (format: A.B.C.D/M) from which you want to allow or deny users access.
- For Destination Address, enter the IP address and subnet mask (format: A.B.C.D/M) to which you want to allow or deny users access.
- You can allow or restrict subnet access based on the Application, Protocol, Source Port, or Destination Port used.
- Click Add to save the subnet access rule.
- Click Apply to apply this rule to the guest wireless network.
- Repeat Steps 5 through 12 to create up to 21 subnet access rules.
