Setting the Dedicated Master IP Address in the Member AP CLI

Note: Before you begin, ensure that Dedicated Master setup has been completed.
Complete the following steps to set up the Dedicated Master IP address in the member AP CLI.

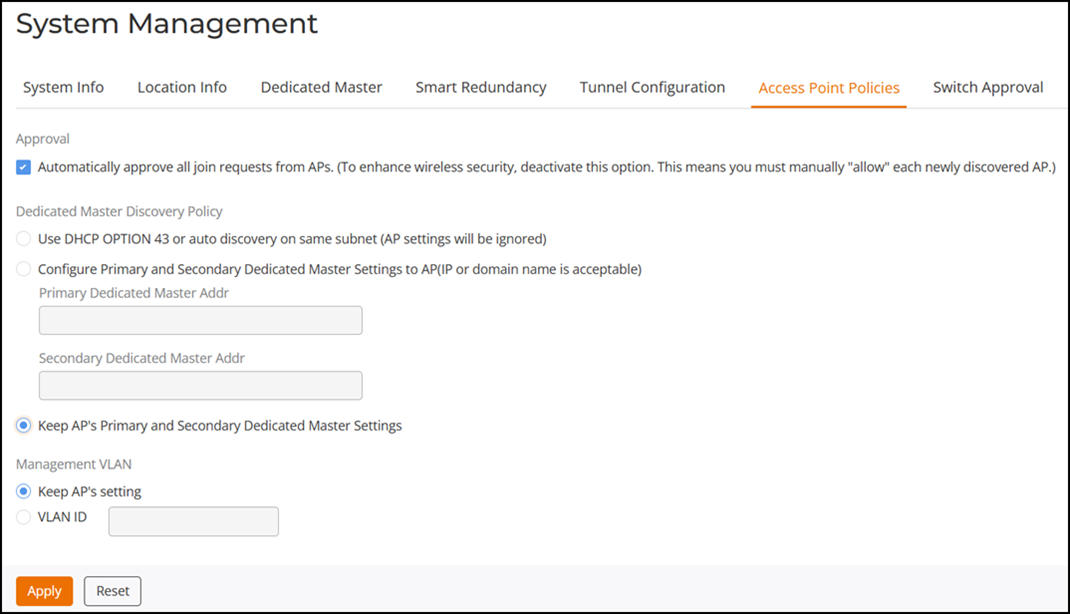

  1. Select System Settings > System Management > Access Point Policies.
  2. Select the Approval checkbox.
  3. For Dedicated Master Discovery Policy, select Keep AP's Primary and Secondary Unleashed Settings.

    Maintaining Unleashed Settings of the AP

  4. Power on the AP and set the Dedicated Master IP address in the member AP CLI.
    ruckus>
ruckus> en
ruckus#
ruckus# ap-mode
You have all rights in this mode.
ruckus(ap-mode)#
ruckus(ap-mode)# set director ip 2.2.2.2
** Please reboot for this change to take effect
OK
ruckus(ap-mode)#
    After reboot, the member AP automatically joins Dedicated Master.
Parent topic: Joining a Member AP to the Dedicated Master Network
