Placing a Member AP in the Same Network as Dedicated Master

Note: Before you begin, ensure that Dedicated Master setup has been completed.
  1. Select System Settings > System Management > Access Point Policies.
  2. Select the Approval checkbox.
  3. Under Dedicated Master Discovery Policy, select Use DHCP OPTION 43 or auto discovery on same subnet (AP settings will be ignored).

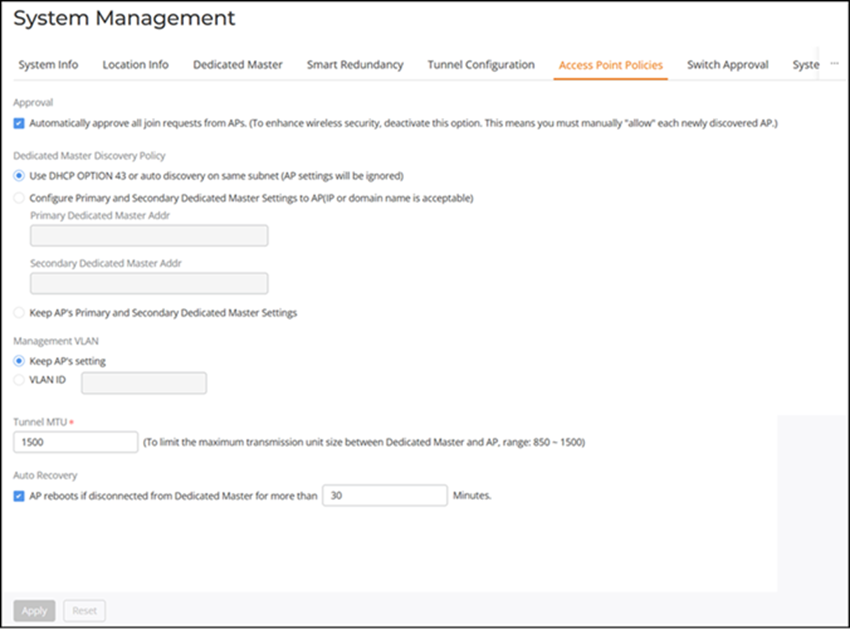

    Placing Member AP in Same Network as Dedicated Master

  4. Place the member AP in the same network as Dedicated Master and power on the AP.
    The member AP automatically joins the Dedicated Master.
Parent topic: Joining a Member AP to the Dedicated Master Network
