OAuth Setup Procedure for Microsoft Live Social Media Login

Complete the following steps to generate an OAuth 2.0 ID for Microsoft Live social media WLAN login.

  1. Go to the Microsoft Live development dashboard (https://portal.azure.com/#blade/Microsoft_AAD_RegisteredApps/ApplicationsListBlade), and click New registration.

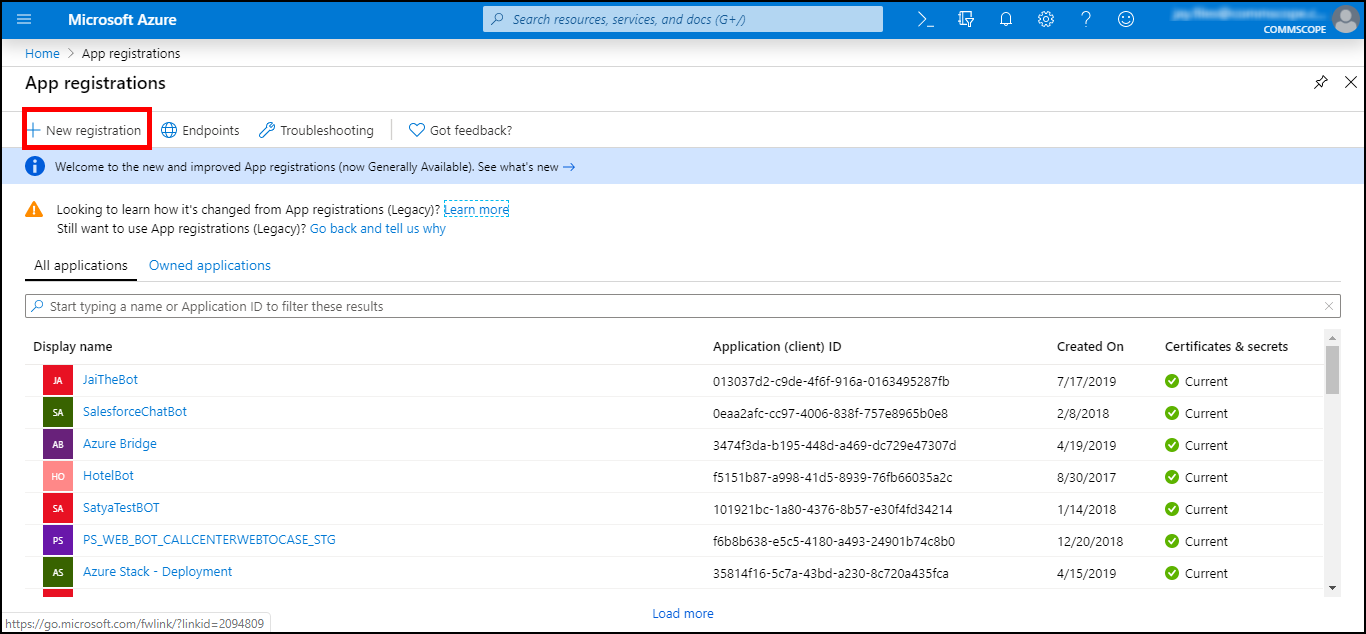

    Creating a New App Registration

  2. Enter a name for the application.
  3. Content reuse for Unleashed
    For Support Account Types, select Accounts in any organizational directory and personal Microsoft accounts (refer to Registering an Application: Configuration Settings).
  4. Content reuse for Unleashed
    Under Redirect URI:, enter a valid redirect callback URL.
    Note: If you have imported an SSL certificate with a fully qualified domain name (FQDN) to RUCKUS Unleashed, you must use the FQDN. For example, if the FQDN is mydomain.com, the Redirect URI will be http://mydomain.com/user/auth.jsp.

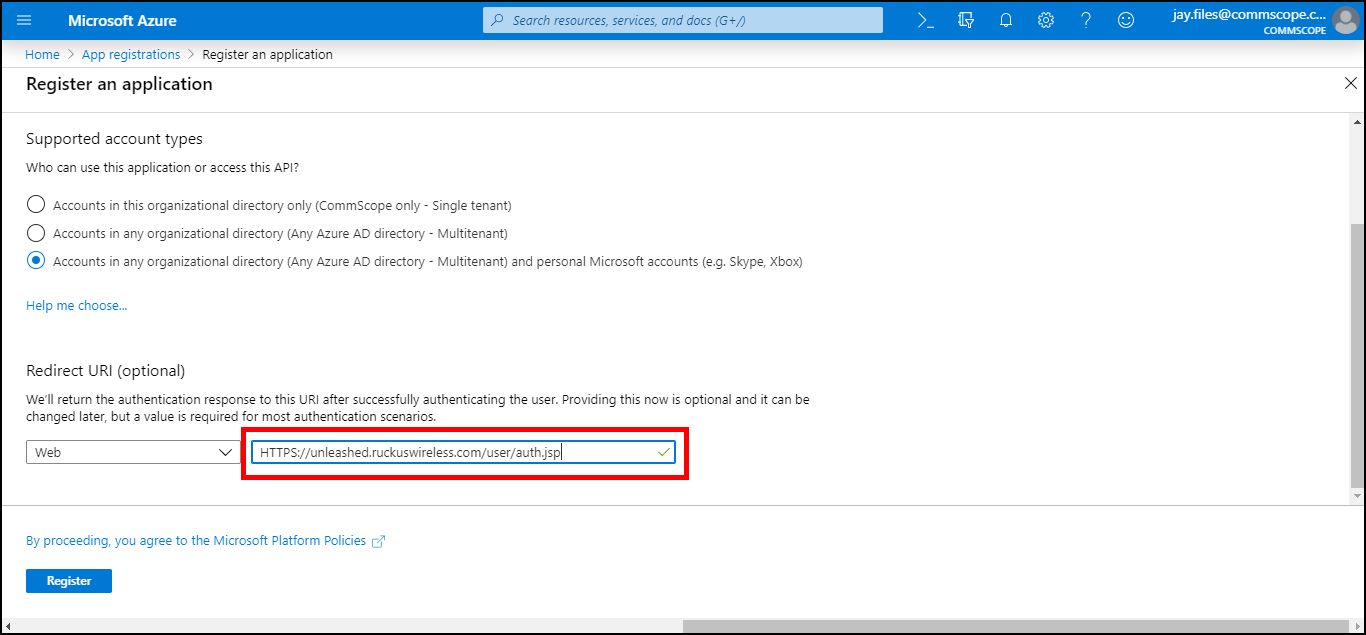

    Registering an Application: Configuration Settings

  5. Click Register.
    Microsoft provides you with the Application (client) ID. Take note of this value, as you must enter it into the web interface later.

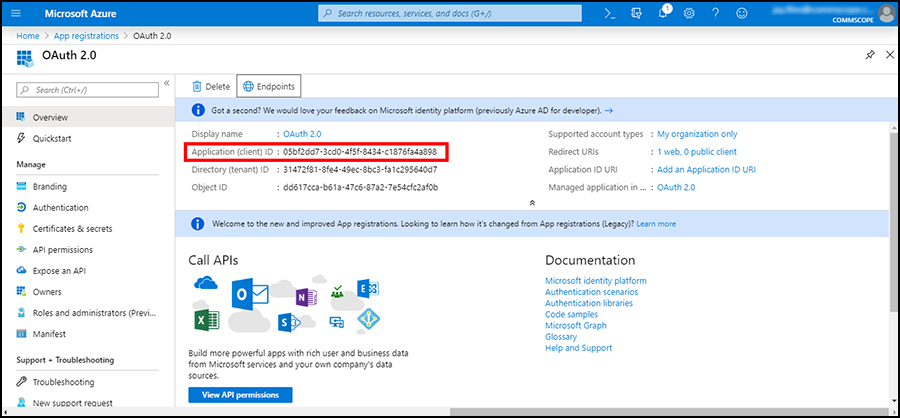

    Noting the Application (Client) ID

  6. Create a client secret using the following steps:
    1. Under Manage, select Certificates & secrets.
    2. Click New client secret.
    3. Enter a value in Description, select an option for Expires, and click Add.
    4. Copy and save the client secret because you must enter this value when you log in to the web interface.

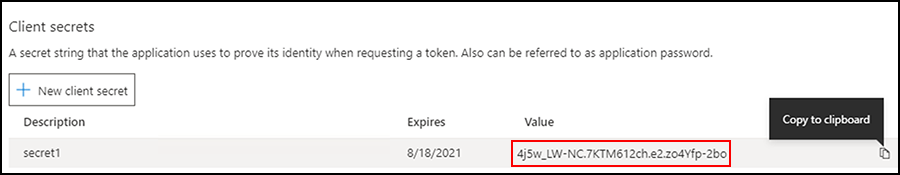

      Noting the Client Secret

  7. In the web interface, use the following settings on the Portal Settings wizard page on Create Wi-Fi Network configuration screen:

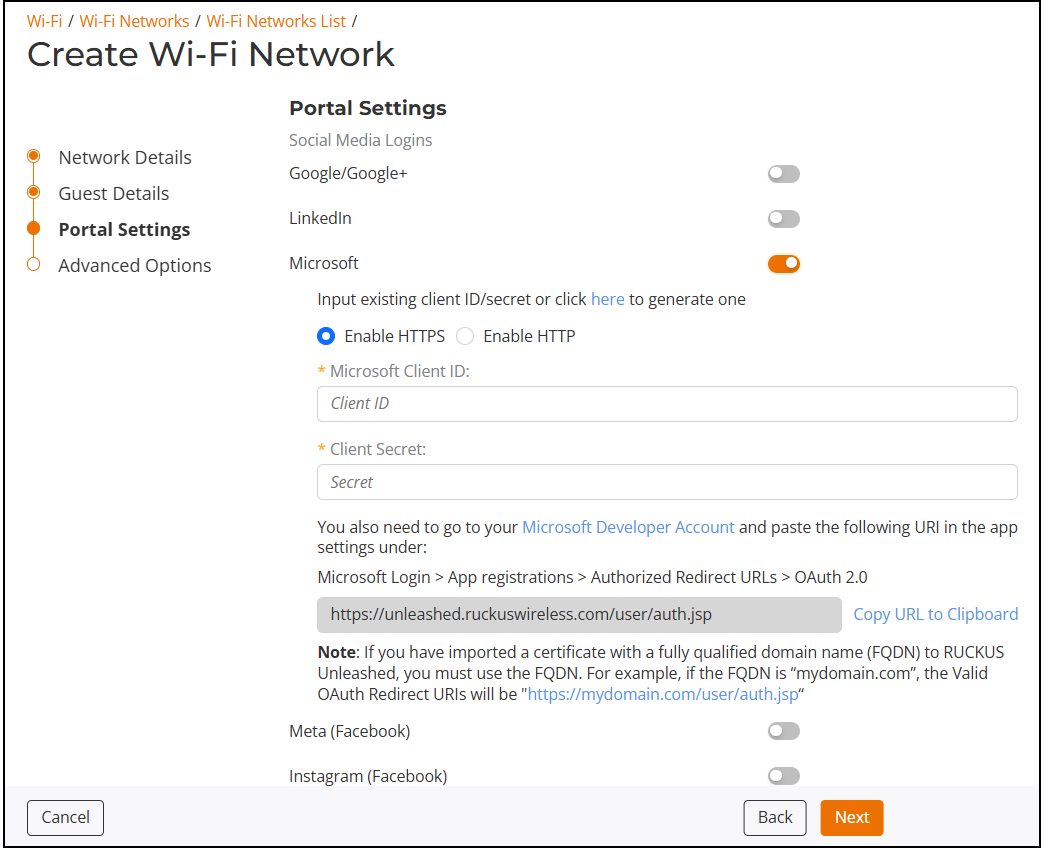

    Microsoft Social Media Login Configuration

Parent topic: Microsoft Live
