Configuring Global WLAN Settings

Complete the following steps to configure global settings for all WLANs.
Difference in UI label for Unleashed and RUCKUS Blue
  1. From the main menu, select Wi-Fi > Wi-Fi Networks > Wi-Fi Networks List.

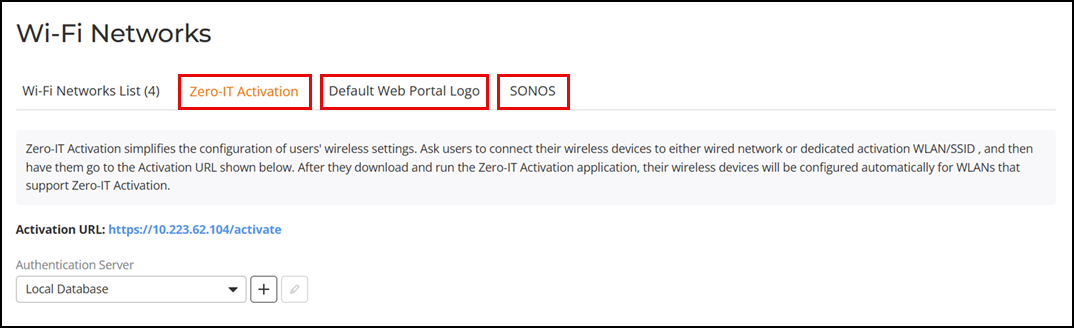

  2. In the Wi-Fi Networks page, select one of the following tabs to configure settings for all WLANs:
    • Zero-IT Activation: For Authentication Server, select an authentication server from the drop-down list or click the to create a new one. Refer to AAA Servers for more information. By default, Local Database is selected.
    • Default Web Portal Logo: Replace the RUCKUS logo with your own logo to be displayed in the login page when clients connect to a Web Auth WLAN.
      Note: The recommended image size is 415 x 100 pixels. The maximum file size is 200 KB.
    • 200.17 feature
      SONOS: By default, SONOS Compatibility is enabled, ensuring seamless integration and optimal performance of Sonos devices within the Unleashed network.

      If you disable SONOS Compatibility, then Directed DHCP is enabled and the controller will drop the DHCP proxy packets if the Layer 2 MAC address does not match the chaddr (Client Hardware Address) field in the DHCP packet.

  3. Click Apply to save your changes.

    Global Configuration Settings for All WLANs

Parent topic: WLAN Configuration
