The RUCKUS Unleashed R370 is a dual-band concurrent Wi-Fi 7 (IEEE 802.11be) indoor AP that
supports six spatial data streams (2x2:2 in 2.4GHz and 5GHz [dual-band mode]).
The RUCKUS Unleashed R370 includes a
2.5 GbE Ethernet port.
Unleashed R370 Access
Point

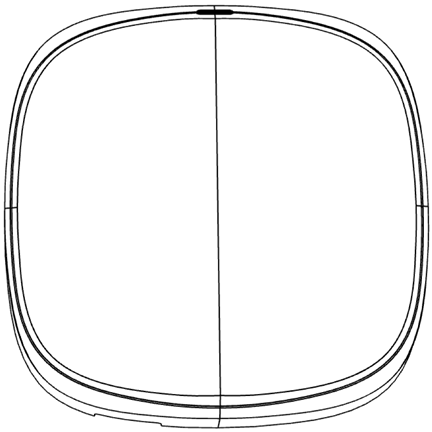

R370 AP Front Panel
The R370 AP features a single system LED on its
front panel that can display three colors (Red, Amber, and Green).
R370 AP Front Panel LED
| Color |
Light Pattern |
Description |
| Red |
Solid Red |
AP is determining power mode |
| Slow Blinking Red |
AP is in 802.3af power mode |
| Blinking between Red and Green |
AP is undergoing factory reset |
| Blinking between Red and Amber |
AP is proceeding with a Factory Reset to Recovery Mode |
| Amber |
Solid Amber |
AP has sufficient power and is now booting up |
| Blinking Amber |
System network gateway is lost |
| Slow Blinking Amber |
AP system controller interface is lost |
| Fast Blinking Amber |
AP is being loaded with a firmware or configuration update
|
| Green |
Solid Green |
AP WLANs, services, and controller management are
operational |
| Solid Green without Advanced Mode or Slow Blinking Green with
Advanced mode |
AP WLAN has at least one client connected |
| Solid Green without Advanced Mode or Slow Blinking - Green with
Advanced Mode |
AP WLAN has at least one client connected and mesh networking is
enabled |
| No Color |
OFF |
- No power
- Controller
connectivity is lost
- The LED has
been disabled via the controller
|
