Displaying the front panel of the RUCKUS ICX 7150

To display the front panel, click Monitor on the left panel and select Front Panel.

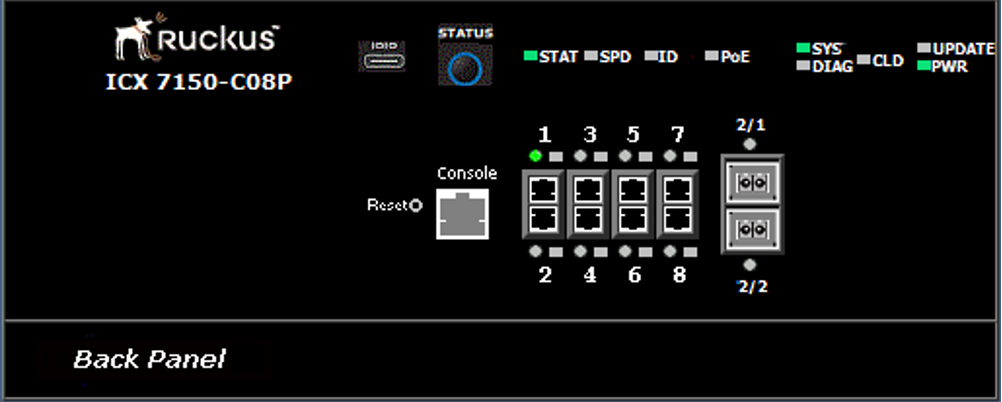

The figure below shows the front panel of the RUCKUS ICX 7150-C08P device.

RUCKUS ICX 7150-C08P device front panel

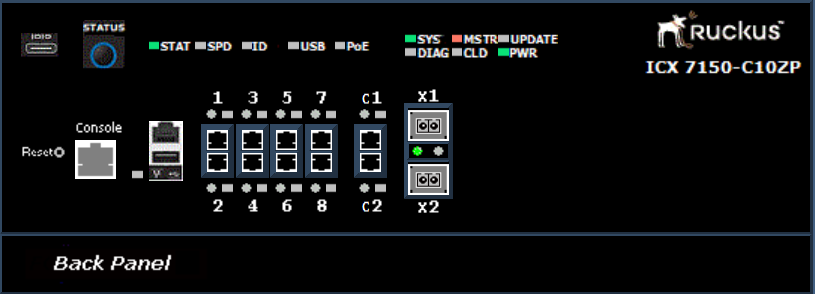

The figure below shows the front panel of the RUCKUS ICX 7150-C10ZP device.

RUCKUS ICX 7150-C10ZP device front panel

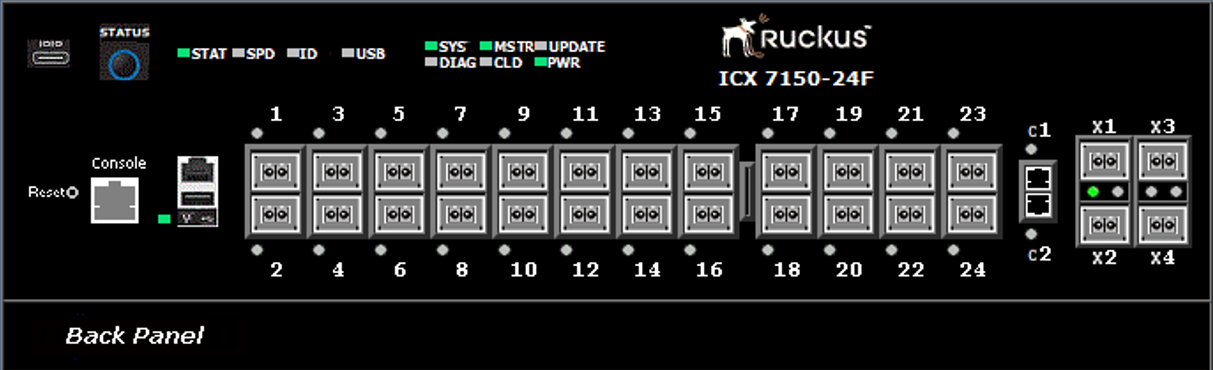

The figure below shows the front panel of the RUCKUS ICX 7150-24F device.

RUCKUS ICX 7150-24F device front panel

The figure below shows the front panel of the RUCKUS ICX 7150-48ZP device.

RUCKUS ICX 7150-48ZP device front panel
