Configuring a static ARP

To configure a static Address Resolution Protocol (ARP) entry, perform the following steps.

  1. Click Configure on the left pane and select IP.
  2. Click Static ARP.

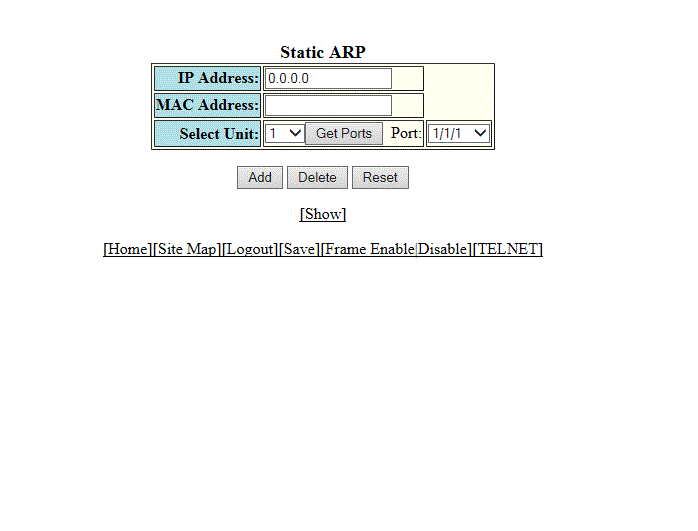

    The Static ARP window is displayed as shown in the figure below.

    Configuring static ARP

  3. Type the IP address of the directly connected device in the IP Address field.
  4. Type the MAC address of the device in xx-xx-xx-xx-xx-xx format in the MAC Address field.
  5. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
    A message is displayed to indicate that the operation does not change the running configuration.
  6. Select a port from the Port list.
  7. Click Add .

    The message The change has been made is displayed. To display the configured static ARP entry, click Show .

    To reset the data entered in the configuration pane, click Reset .

    Note: The delete operation is not supported in 08.0.20 and later releases.
