Displaying flash information

To display the flash information, click Monitor on the left pane and select Flash.

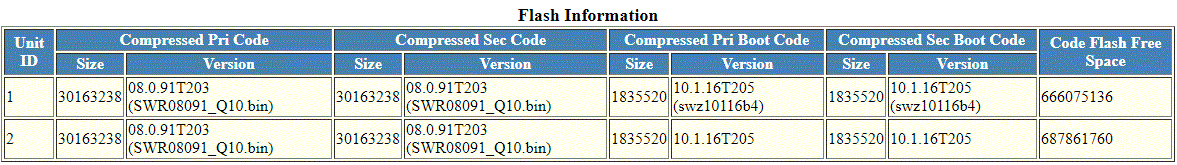

The Flash Information window is displayed as shown in the figure below.

Monitoring the flash information

The table below describes the fields in the Flash Information window.

Description of the fields in the Flash Information window

Field

Description

Unit ID

Displays the number of the unit within a stack.

Compressed Pri Code

Displays the compressed size and version for the primary code.

Compressed Sec Code

Displays the compressed size and version for the secondary code.

Compressed Pri Boot Code

Displays the compressed size and version for the primary Boot code.

Compressed Sec Boot Code

Displays the compressed size and version for the secondary Boot code.

Code Flash Free Space

Displays the amount of free space available on the flash memory.

Note: In the Flash Information window, Standby and Member units do not display the Version label for Compressed Pri Boot Code and Compressed Sec Boot Code.
Parent topic: Monitoring Basic Device Information
