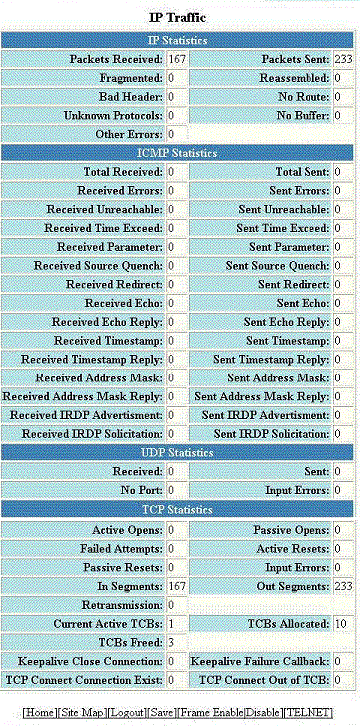

IP Statistics parameters
|
|
Packets Received
|
Displays the number of IP packets received by the device.
|
|
Packets Sent
|
Displays the number of IP packets originated and sent by the device.
|
|
Fragmented
|
Displays the number of IP packets fragmented by this device before sending or forwarding
them.
|
|
Reassembled
|
Displays the number of fragmented IP packets received and re-assembled by the device.
|
|
Bad Header
|
Displays the number of IP packets dropped because they had a bad header.
|
|
No Route
|
Displays the number of packets dropped by the device because they had no route information.
|
|
Unknown Protocols
|
Displays the number of packets dropped by the device because the value in the protocol
field of the packet header is unrecognized by this device.
|
|
No Buffer
|
Displays the number of packets dropped because the device ran out of buffer space.
|
|
Other Errors
|
Displays the number of packets dropped due to errors other than the ones already
indicated in the
IP Statistics parameters.
|
|
ICMP Statistics parameters
|
|
Total Received
|
Displays the number of Internet Control Message Protocol (ICMP) packets received
by the device.
|
|
Total Sent
|
Displays the number of ICMP packets sent by the device.
|
|
Received Errors
|
Displays the number of errors received by the device. This information is used by
RUCKUS customer support.
|
|
Sent Errors
|
Displays the number of errors sent by the device. This information is used by
RUCKUS customer support.
|
|
Received Unreachable
|
Displays the number of Destination Unreachable messages received by the device.
|
|
Sent Unreachable
|
Displays the number of Destination Unreachable messages sent by the device.
|
|
Received Time Exceed
|
Displays the number of Time Exceeded messages received by the device.
|
|
Sent Time Exceed
|
Displays the number of Time Exceeded messages sent by the device.
|
|
Received Parameter
|
Displays the number of Parameter Problem messages received by the device.
|
|
Sent Parameter
|
Displays the number of Parameter Problem messages sent by the device.
|
|
Received Source Quench
|
Displays the number of Source Quench messages received by the device.
|
|
Sent Source Quench
|
Displays the number of Source Quench messages sent by the device.
|
|
Received Redirect
|
Displays the number of Redirect messages received by the device.
|
|
Sent Redirect
|
Displays the number of Redirect messages sent by the device.
|
|
Received Echo
|
Displays the number of Echo messages received by the device.
|
|
Sent Echo
|
Displays the number of Echo messages sent by the device.
|
|
Received Echo Reply
|
Displays the number of Echo Reply messages received by the device.
|
|
Sent Echo Reply
|
Displays the number of Echo Reply messages sent by the device.
|
|
Received Timestamp
|
Displays the number of Timestamp messages received by the device.
|
|
Sent Timestamp
|
Displays the number of Timestamp messages sent by the device.
|
|
Received Timestamp Reply
|
Displays the number of Timestamp Reply messages received by the device.
|
|
Sent Timestamp Reply
|
Displays the number of Timestamp Reply messages sent by the device.
|
|
Received Address Mask
|
Displays the number of Address Mask Request messages received by the device.
|
|
Sent Address Mask
|
Displays the number of Address Mask Request messages sent by the device.
|
|
Received Address Mask Reply
|
Displays the number of Address Mask Reply messages received by the device.
|
|
Sent Address Mask Reply
|
Displays the number of Address Mask Reply messages sent by the device.
|
|
Received IRDP Advertisement
|
Displays the number of ICMP Router Discovery Protocol (IRDP) Advertisement messages
received by the device.
|
|
Sent IRDP Advertisement
|
Displays the number of IRDP Advertisement messages sent by the device.
|
|
Received IRDP Solicitation
|
Displays the number of IRDP Solicitation messages received by the device.
|
|
Sent IRDP Solicitation
|
Displays the number of IRDP Solicitation messages sent by the device.
|
|
UDP Statistics parameters
|
|
Received
|
Displays the number of User Datagram Protocol (UDP) packets received by the device.
|
|
Sent
|
Displays the number of UDP packets sent by the device.
|
|
No Port
|
Displays the number of UDP packets dropped because the packet did not contain a valid
UDP port number.
|
|
Input Errors
|
Displays the number of errors on the incoming packets. This information is used by
RUCKUS customer support.
|
|
TCP Statistics parameters
|
|
Active Opens
|
Displays the number of Transmission Control Protocol (TCP) connections opened by
this device by sending a TCP SYN to another device.
|
|
Passive Opens
|
Displays the number of TCP connections opened by this device in response to connection
requests (TCP SYNs) received from other devices.
|
|
Failed Attempts
|
Displays the number of failed attempts. This information is used by
RUCKUS customer support.
|
|
Active Resets
|
Displays the number of TCP connections this device reset by sending a TCP RESET message
to the device at the other end of the connection.
|
|
Passive Resets
|
Displays the number of TCP connections this device reset because the device at the
other end of the connection sent a TCP RESET message.
|
|
Input Errors
|
Displays the number of incoming errors. This information is used by
RUCKUS customer support.
|
|
In Segments
|
Displays the number of TCP segments received by the device.
|
|
Out Segments
|
Displays the number of TCP segments sent by the device.
|
|
Retransmission
|
Displays the number of segments that this device retransmitted because the retransmission
timer for the segment had expired before the device at the other end of the connection
had acknowledged receipt of the segment.
|
|
Current Active TCBs
|
Displays the number of TCP Control Blocks (TCBs) that are currently active.
|
|
TCBs Allocated
|
Displays the number of TCBs that have been allocated.
|
|
TCBs Freed
|
Displays the number of TCBs that have been freed.
|
