Configuring the port uplink relative utilization
To configure the port uplink utilization list, perform the following steps.
- Click Configure on the left pane and select Port.

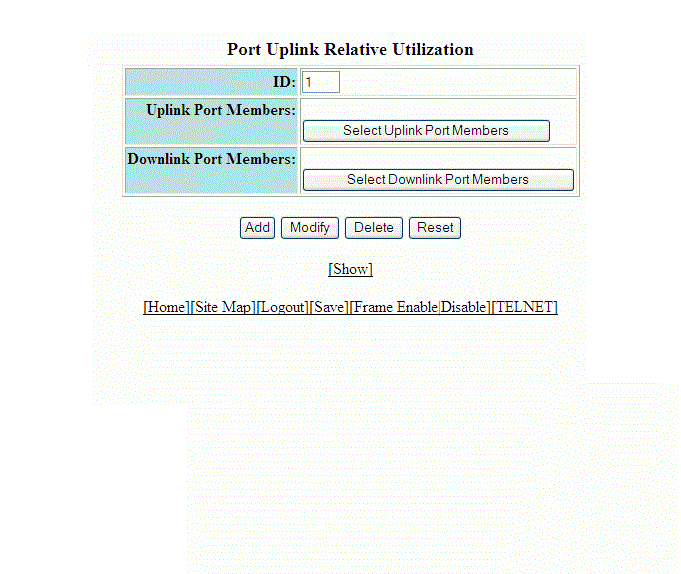

- Click Relative Utilization on the ETHERNET Port Configuration, Configure Inline Power, or Management Port Configuration window.
- Type the uplink utilization list number (from 1 through 4) in the ID field.
- Click Select Uplink Port Members to select the uplink ports.
- Click Select Downlink Port Members to select the downlink ports.
- Click
Add.
The message The change has been made is displayed. To display the configured port uplink utilization list, click Show.
To modify the configured port uplink utilization list, click Modify. You can also delete the configured port uplink utilization list by clicking Delete. To reset the data entered in the configuration pane, click Reset.
