Displaying stack ports information

To display the information of the stack ports, perform the following steps.

Click Stack-Ports and then select Status .

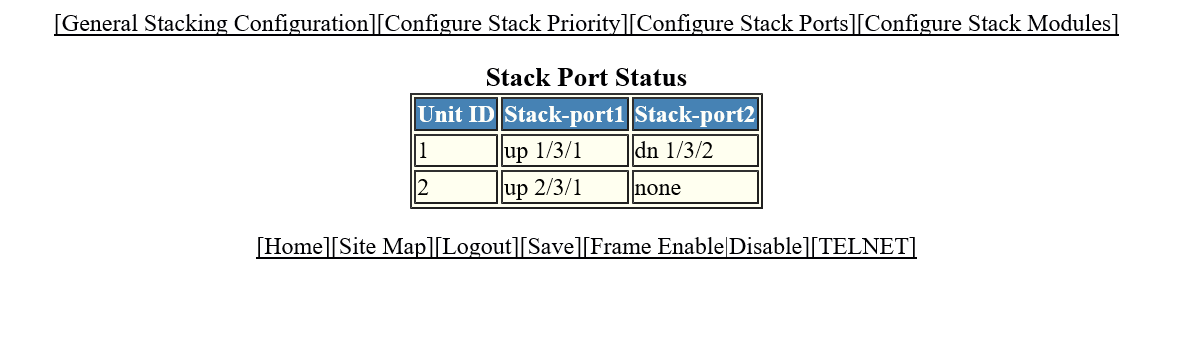

The Stack Port Status window is displayed as shown in the figure below.

Field	Description
Unit ID	Displays the number of the unit within the stack.
Stack-port1	Displays the port state and the port number for stack-port1 for this unit ID. The port states are as follows: up --Each end is connected. down --Port is configured as a stacking port, but not connected. none --Port is not configured as a stacking port.
Stack-port2	Displays the port state and the port number for stack-port2 for this unit ID. The port states are: up --Each end is connected. down --Port is configured as a stacking port, but not connected. none --Port is not configured as a stacking port.

Field

Description

Unit ID

Displays the number of the unit within the stack.

Stack-port1

Displays the port state and the port number for stack-port1 for this unit ID.

The port states are as follows:

Stack-port2

Displays the port state and the port number for stack-port2 for this unit ID.

The port states are:

The Stack Port Status window provides links to configure the stack components:

To change the stack settings, click General Stacking Configuration . For more information, refer to Configuring the general settings for an IronStack.

To view the priority of units within a stack, click Configure Stack Priority . For more information, refer to Viewing stack priority details.

To configure a stack module, click Configure Stack Modules . For more information, refer to Configuring a stack module.
