Displaying a stack module

To display current information about the stack unit modules, perform the following steps.

  1. Click Monitor on the left pane and select Stack.
  2. Click Module.

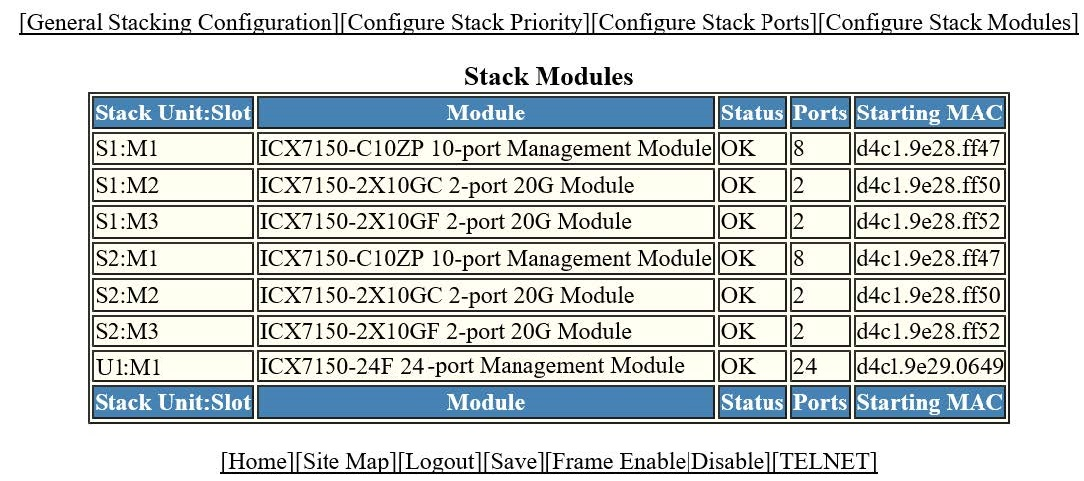

    The Stack Modules window is displayed as shown in the figure below.

    Stack module

    Description of the fields in the Stack Modules window

    Field

    Description

    Stack Unit: Slot

    Displays the number of the unit within the stack and the slot number.

    Module

    Displays the device information, such as module number and module type.

    Status

    Displays the status, which can be one of the following:

    • OK -- The module came up and is operating normally.
    • CFG --The module is configured, but does not physically exist within the units of the stack.

    Ports

    Displays the number of ports on the module.

    Starting MAC

    Displays the starting MAC address for this module.

    The Stack Modules window provides links to configure the stack components:

    • To change the stack settings, click General Stacking Configuration. For more information, refer to Configuring the general settings for a traditional stack.
    • To configure the priority of units within a stack, click Configure Stack Priority. For more information, refer to the “Modifying a stack priority” section.
    • To configure a stack module, click Configure Stack Modules. For more information, refer to the “Configuring Stack Components” section.
Parent topic: Monitoring Stacks
