Configuring an IP access group

To configure an IP access group to bind specific ACLs to specific ports, perform the following steps.

  1. Click Configure on the left pane and select IP .
  2. Click IP Access Group .

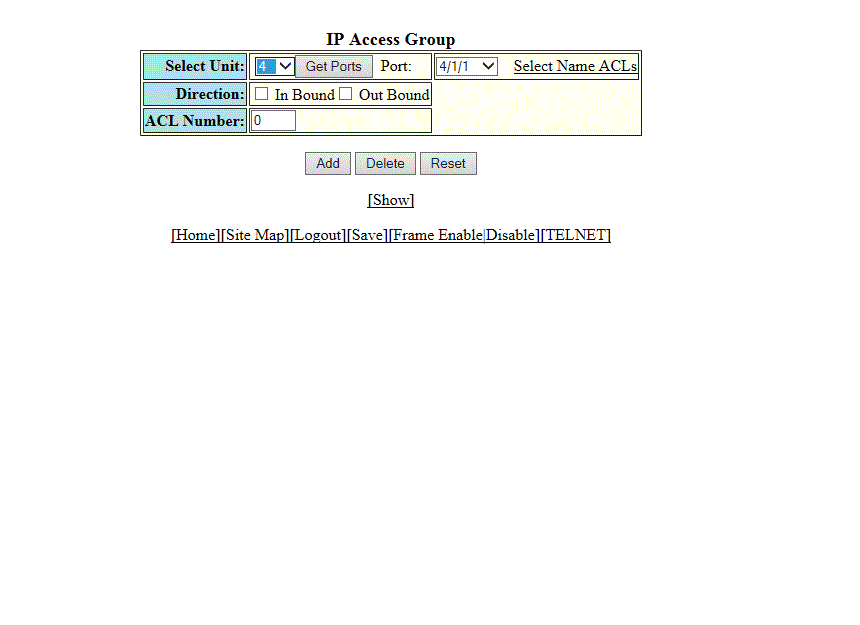

    The IP Access Group window is displayed as shown in the figure below.

    Configuring IP access groups

  3. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
    A message is displayed to indicate that the operation does not change the running configuration.
  4. Select a port in the Port list.
      • stack-unit/slotnum/portnum
  5. Select the In Bound check box for Direction to enable incoming traffic on the interface to which you apply the ACL.
  6. Type the ACL number in the ACL Number field. If you want to type an ACL name, click Select Name ACLs . The field label changes to ACL Name . Now you can type the ACL name up to 256 alphanumeric characters in length.
  7. Click Add .

    The message The change has been made is displayed. To display the configured IP access group, click Show .

    To delete the configured IP access group, click Delete . To reset the data entered in the configuration pane, click Reset .
