Configuring a filter group

To configure a system filter group, perform the following steps.

  1. Click Filter Group on the right pane of the MAC Filter window.

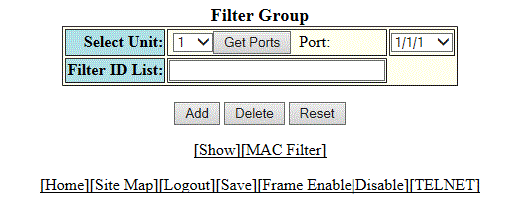

    The Filter Group window is displayed as shown in the figure below.

    Configuring a filter group

  2. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
    A message is displayed to indicate that the operation does not change the running configuration.
  3. Select a port number in the Port list.
    • stack-unit/slotnum/portnum
  4. Type the filter identifier in the Filter ID List field.
  5. Click Add.

    The message The change has been made is displayed. To display the configured filter group, click Show.

    To delete the configured filter group, click Delete. To reset the data entered in the configuration pane, click Reset.
