Upgrading ICX Switch Firmware

Unleashed management requires FastIron firmware version 08.0.90 or later.
To upgrade the firmware of an ICX switch, use the following procedure:
  1. Expand the Switches dashboard component and select a connected switch from the connected device list on the left.
  2. Click More > Upgrade.

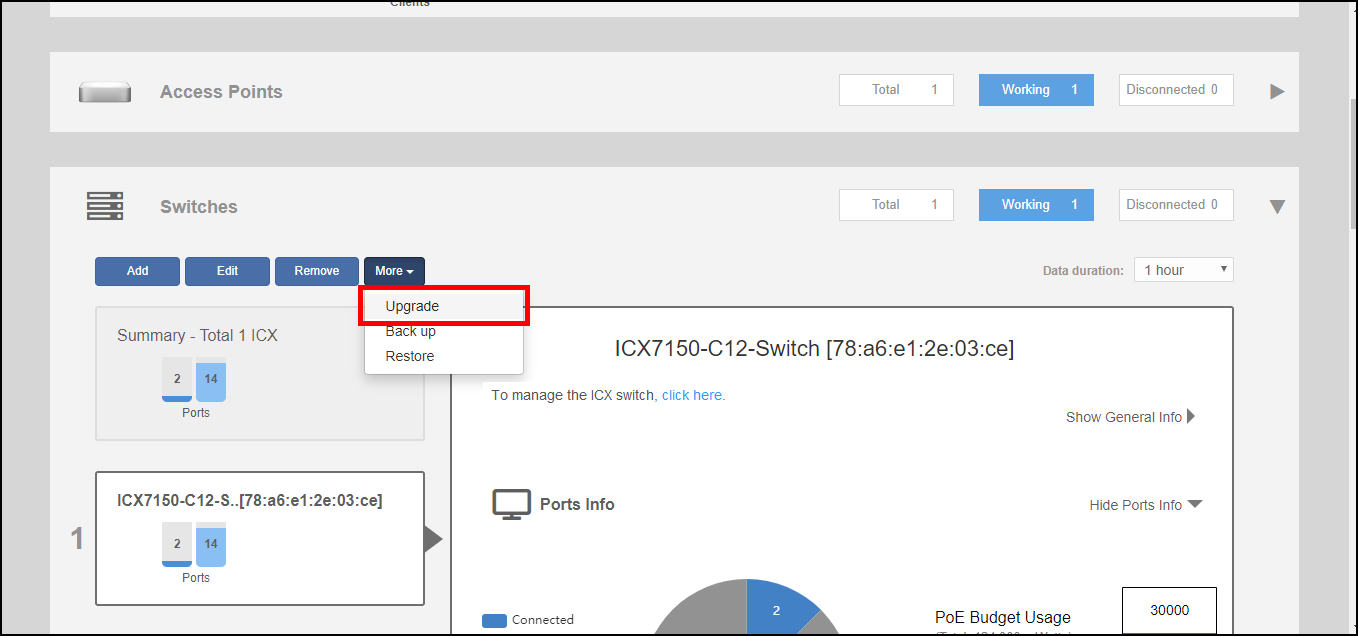

    Upgrading an ICX switch

  3. In the Upgrade dialog, click Choose File and select a valid FastIron image file.

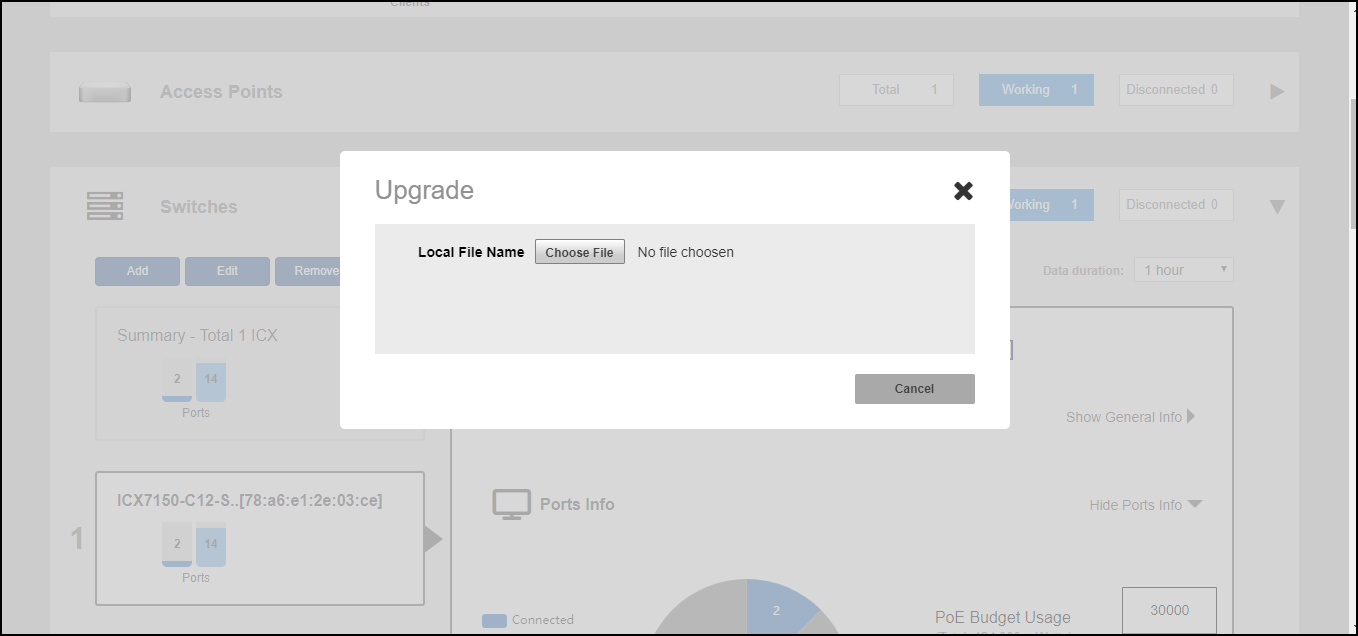

    Choose upgrade image file

  4. Click Upgrade. A warning message appears notifying you that the upgrade will cause a power outage to your Unleashed APs. Click Yes to continue.

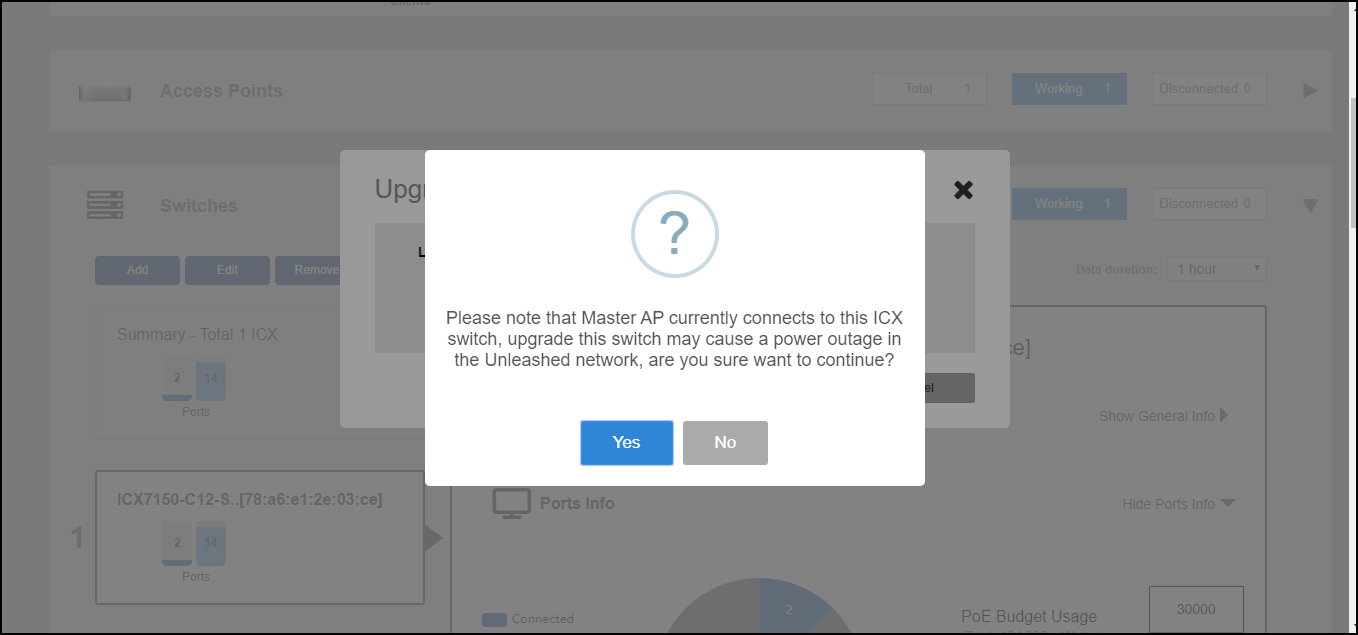

    Upgrade warning message

  5. When the upgrade is complete, Unleashed reboots and displays the switch in the connected device list.
  6. Verify the new firmware version from the Show General Info display.

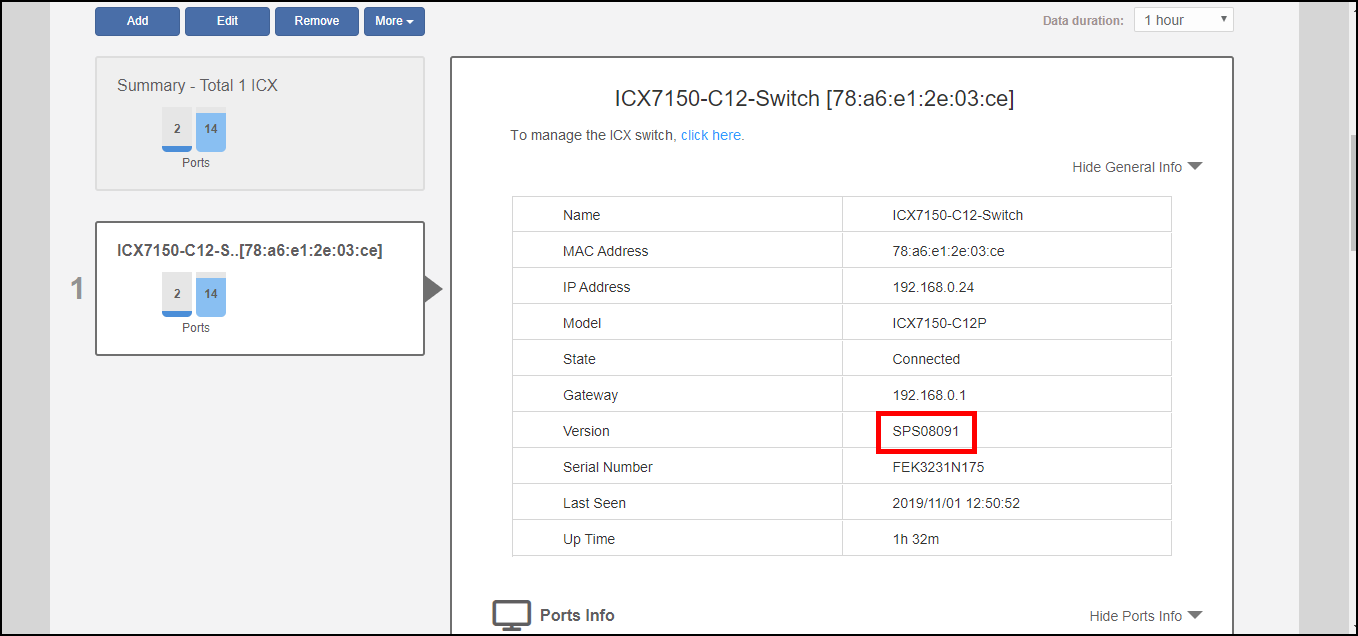

    Verify switch version

Parent topic: ICX Switch Management
