The RUCKUS Unleashed R770 is a tri-band
concurrent Wi-Fi 7 (IEEE 802.11be) indoor AP that supports eight spatial data streams
(2x2:2
in 2.4Ghz and 6GHz and 4x4:4 in 5Ghz).
The RUCKUS Unleashed R770 AP
provides Wi-Fi 7 features such as Multi-Link Operation (MLO), Preamble Puncturing,
4K
Quadrature Amplitude Modulation (QAM), and 320 MHz Channels. The RUCKUS
Unleashed AP includes a USB port, a 10 Gbps Ethernet port (which supports IEEE
Standards 802.3af, 802.3at, and 802.3bt PoE), and a 1 GbE port (non-PoE).
Require confirmation from Engg.
Note: Dedicated Master mode is supported if a R770 AP
is the Master AP in the RUCKUS Unleashed network.
This section describes the physical features of
the RUCKUS
Unleashed R770 AP.
Unleashed R770 Access
Point
R770 AP Front Panel

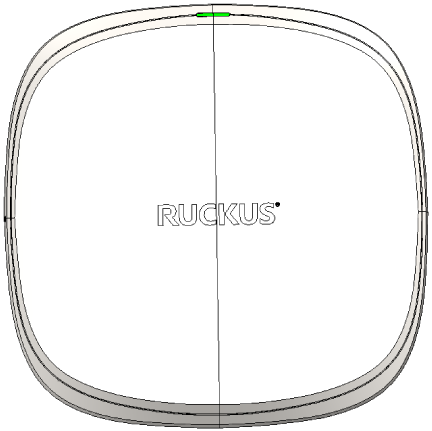

The R770 AP features a single system LED on its
front panel that can display three colors (Red, Amber, and Green).
R770 AP Front Panel LEDs
State Base Light
Status
Description
Power Negotiation Mode (Red)
Off
No power connected.
Slow Blinking Red
(The light is on for 0.5 seconds and off for 1.5
seconds)
AP is on and in IEEE 802.3af low-power mode.
Solid Red
AP is on and in full-power mode and boot-up is in
process.
Operation Preparation State (Amber)
Blinking Amber
(The light is on for 1 second and off for 1
second)
One of the following:
System is in Configure.Me or Zero Touch
Mesh (ZTM) state.
Management Gateway is lost.
Solid Amber
AP has successfully obtained an IP address, either
through DHCP or a static IP assignment.
Fast Blinking Amber
(The light is on for 0.25 seconds and off for
0.75 seconds.
AP is being loaded with a configuration or firmware
update.
Slow Blinking Amber
(The light is on for 0.5 seconds and off for 1.5
seconds)
System controller is lost.
Service State (Green)
Solid Green
AP WLANs services and Controller management are
operational.
AP WLAN has at least one client connected.
AP WLAN has at least one client connected and Mesh networking is
established.
