Configuring Global WLAN Settings

Complete the following steps to configure global settings for all WLANS.

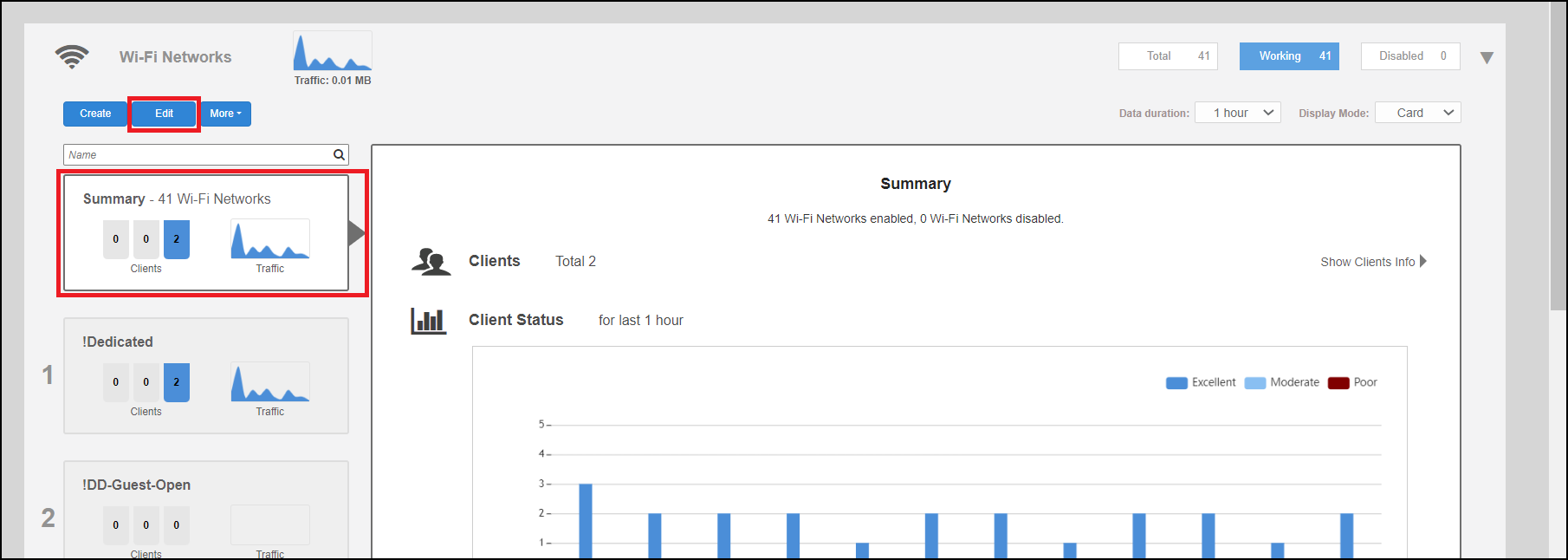

  1. In the Wi-Fi Networks section, select the Summary WLAN box, and click Edit.

    Configuring Global Settings for All WLANs

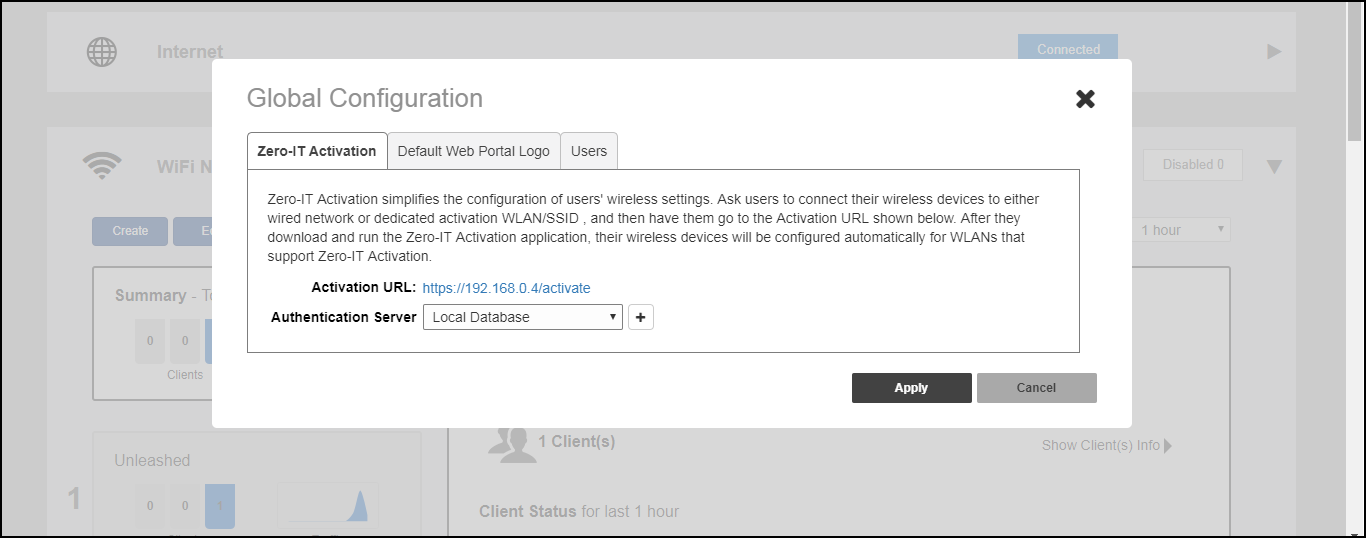

  2. From the Global Configuration dialog box, select one of the following tabs to configure settings for all WLANs:
    • Zero-IT Activation: Select an Authentication Server from the list, or click Create Service to create a new one.
    • Default Web Portal Logo: Replace the RUCKUS logo with your own logo to be displayed on the login page when clients connect to a Web Auth WLAN.
      Note: The recommended image size is 138 x 40 pixels. The maximum file size is 20 KB.
    • Users: Create new users on the internal database.
  3. Click Apply to save your changes.

    Global Configuration Settings for All WLANs

Parent topic: WLAN Configuration
