T750
The RUCKUS T750 is a high-end dual-band
outdoor Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz).
The T750 provides advanced 802.11ax features including OFDMA and MU-MIMO, and supports up to 1,024 client connections with increased capacity, improved coverage and performance in ultra-high density environments.
The T750 includes a 2.5 GbE Ethernet PoE+ port for high speed Ethernet backhaul, along with an SFP fiber port for fiber backhaul. Additionally, it includes built-in GPS, USB port, gigabit PoE out port, and IP-67 rated weather proofing.
This section describes the physical features of the RUCKUS Unleashed T750 AP.

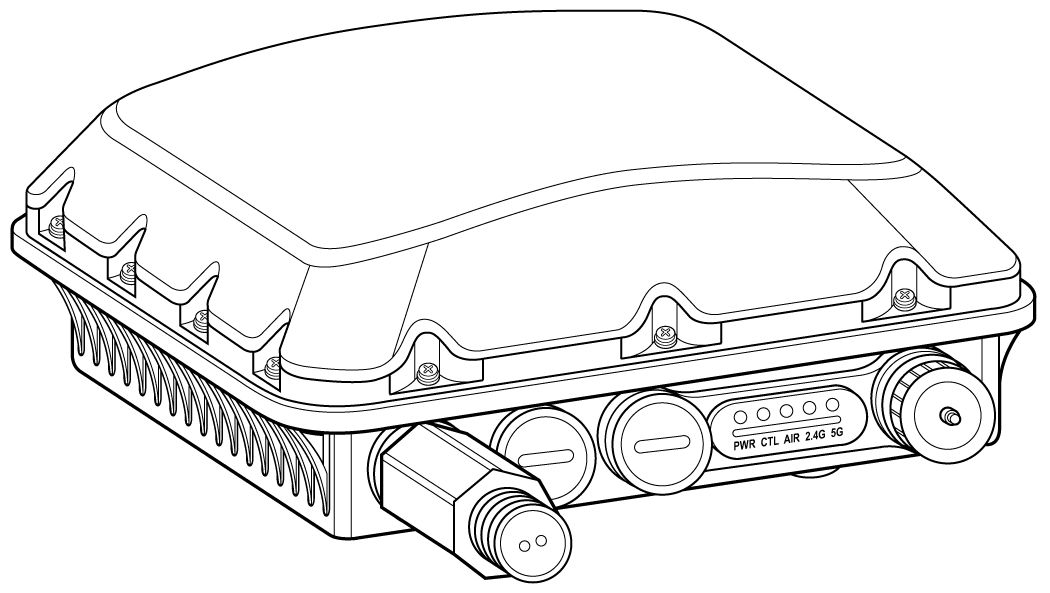

Front Panel
The T750 AP features five LEDs on its front panel.
Front Panel LEDs
| LED | Status | Description |
|---|---|---|
| PWR | Off | No power connected. |
| Solid Red | Boot up in process. | |
| Flashing Green | System started, no routable IP address detected. | |
| Solid Green | Routable IP address received. | |
| CTL | Off | Unleashed Member AP. |
| Flashing Green (slow, every 2 seconds) | Network problem. Cannot contact Unleashed Master. | |
| Flashing Green (fast, 2x per second) | Receiving configuration or image upgrade. | |
| Solid Green | Unleashed Master AP. | |
| AIR | Off | No upstream mesh connection (Root AP). |
| Solid Green | Upstream mesh connection established (Mesh AP). | |
| Solid Red | Upstream mesh connection issue. | |
| 2.4G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 2.4 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 2.4 GHz radio. | |
| 5G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 5 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 5 GHz radio. | |
| Flashing Green | Radio is up, at least one downstream Mesh AP is connected to the 5G radio. |
