802.1X WLAN Survivability

The WLAN Survivability feature allows 8021X end users to continue to authenticate successfully and access the internet even when the external RADIUS server is unreachable for a configurable period of time.

With this feature enabled, the RUCKUS device caches the user's credentials for reuse in the event of disconnection from the AAA server.

Note: Enabling this feature on the Unleashed web interface will not work unless the relevant configuration is also performed on the RADIUS server. This procedure assumes the reader has a high level of competence in RADIUS customization. Specifically, the user will need the ability to write scripts or code to recognize our RUCKUS RADIUS attributes and respond with the correct values by properly calculating the password and challenge strings.

To configure WLAN Survivability for 802.1X WLAN clients:

  1. Go to WiFi Networks > Create/Edit WLAN.
  2. In Usage Type, select Standard.
  3. In Authentication Method, select 802.1X EAP.
  4. In Authentication Server, select or create a new RADIUS server to authenticate with.
  5. In WLAN Survivability, select Enabled.
  6. In Cache Time, enter a value in hours (1-128) to cache the user credentials.
  7. Click OK to save your changes.

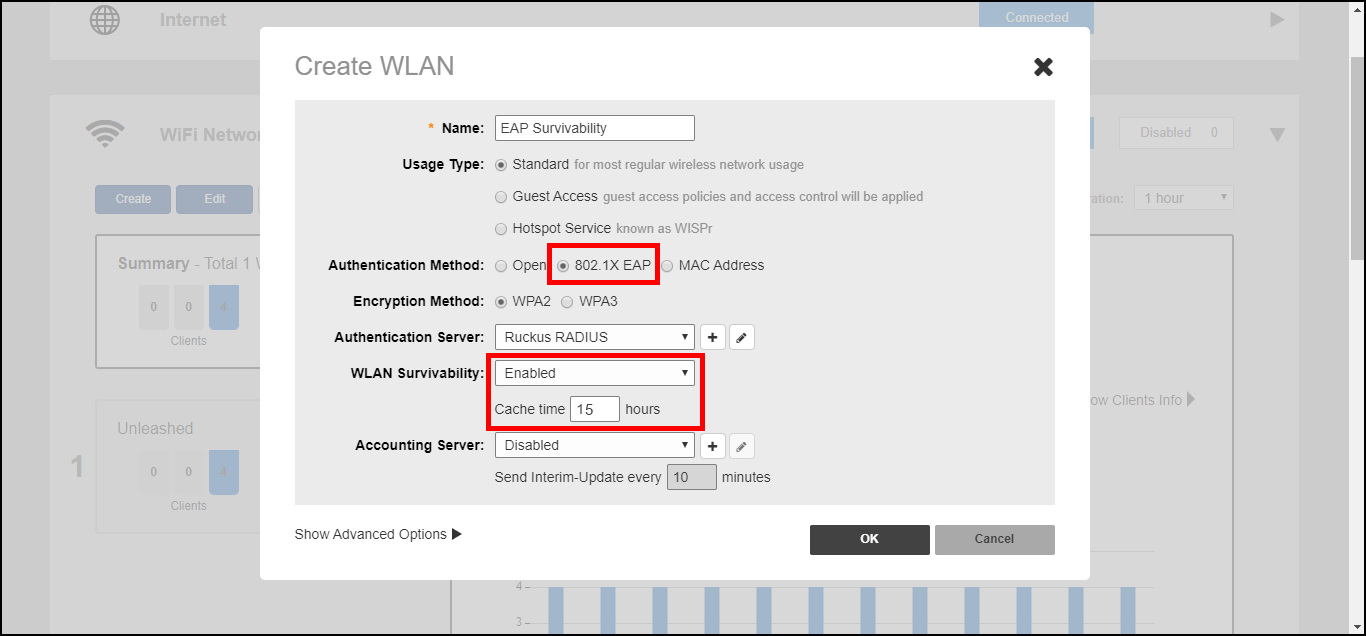

    Enable 802.1X WLAN survivability

  8. The RUCKUS controller will send the RADIUS request with the attribute: RADIUS_RUCKUS_AUTH_SURVIVABILITY = 15 after enabling the survivability feature.
  9. The RADIUS server must have the capability of recognizing the request and answering with the following attributes in the access-accept message: RADIUS_RUCKUS_USER_NAME = 16 , /*Survivability-Usr-Name*/ RADIUS_RUCKUS_PASSWORD_NT_HASH = 17 /*Survivability-MD5-NT-Passwd*/ .
  10. How the RADIUS server calculates the two new attributes:
    • RADIUS_RUCKUS_USER_NAME: This is the user name created in the RADIUS server.
    • RADIUS_RUCKUS_PASSWORD_NT_HASH: This is a 32 byte binary data value. RADIUS uses the following steps to create this attribute:
      1. The server generates a Windows NT hash of the user’s password using the MS_CHAPv2 algorithm.
      2. It uses the first random 16 bytes as an authenticator and the shared secret to encrypt the data generated by the previous step via MD5 as a user password does (refer to RFC 2865, Chapter 5.2). The following is a code snippet of the user password encryption algorithm:
        struct radius_attr_hdr *
radius_msg_add_attr_user_password(struct radius_msg *msg,
				  TAC_U8 *data, size_t data_len,
				  TAC_U8 *secret, size_t secret_len)
{
	TAC_U8 buf[128];
	int padlen, i, pos;
	MD5_CTX context;
	size_t buf_len;
	TAC_U8 hash[16];

	if (data_len > 128)
		return NULL;

	memcpy(buf, data, data_len);
	buf_len = data_len;

	padlen = data_len % 16;
	if (padlen) {
		padlen = 16 - padlen;
		memset(buf + data_len, 0, padlen);
		buf_len += padlen;
	}

	MD5Init(&context);
	MD5Update(&context, secret, secret_len);
	MD5Update(&context, msg->hdr->authenticator, 16);
	MD5Final(hash, &context);

	for (i = 0; i < 16; i++)
		buf[i] ^= hash[i];
	pos = 16;

	while (pos < buf_len) {
		MD5Init(&context);
		MD5Update(&context, secret, secret_len);
		MD5Update(&context, &buf[pos - 16], 16);
		MD5Final(hash, &context);

		for (i = 0; i < 16; i++)
			buf[pos + i] ^= hash[i];

		pos += 16;
	}

	return radius_msg_add_attr(msg, RADIUS_ATTR_USER_PASSWORD,
				   buf, buf_len);
}
      3. Replace msg->hdr->authenticator with that first 16 bytes of random data.
      4. Place the results into the second 16 bytes.
    Note: This feature is unavailable when a Backup RADIUS server is configured.
