H550
The H550 is an 802.11ax Wave 2 dual-band
concurrent Wi-Fi Wall Switch with integrated 5-port gigabit Ethernet, in a form
factor
designed for mounting to electrical outlet boxes.

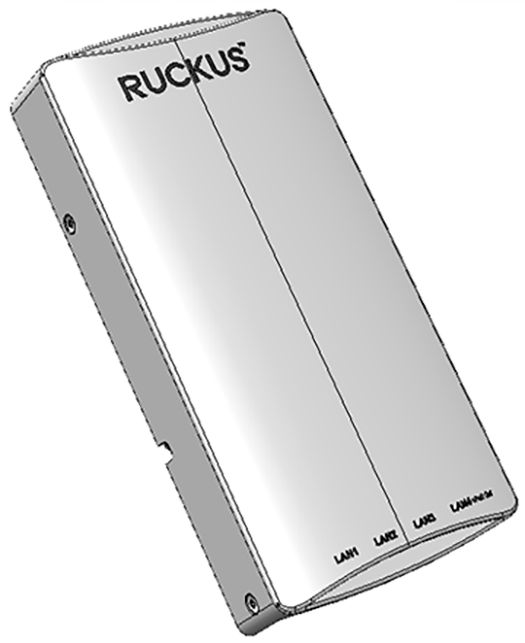

This section describes the physical features of the RUCKUS Unleashed H550 802.11ax Access Point.
Rear Panel
The H550 AP features five LEDs on its rear panel. (LEDs are concealed when mounted.)
Front Panel LEDs
| LED | Status | Description |
|---|---|---|
| PWR | Off | No power connected. |
| Solid Red | Boot up in process. | |
| Flashing Green | System started, no routable IP address detected. | |
| Solid Green | Routable IP address received. | |
| CTL | Off | Unleashed Member AP. |
| Flashing Green (slow, every 2 seconds) | Network problem. Cannot contact Unleashed Master. | |
| Flashing Green (fast, 2x per second) | Receiving configuration or image upgrade. | |
| Solid Green | Unleashed Master AP. | |
| AIR | Off | No upstream mesh connection (Root AP). |
| Solid Green | Upstream mesh connection established (Mesh AP). | |
| Solid Red | Upstream mesh connection issue. | |
| 2.4G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 2.4 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 2.4 GHz radio. | |
| 5G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 5 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 5 GHz radio. | |
| Flashing Green | Radio is up, at least one downstream Mesh AP is connected to the 5G radio. |
