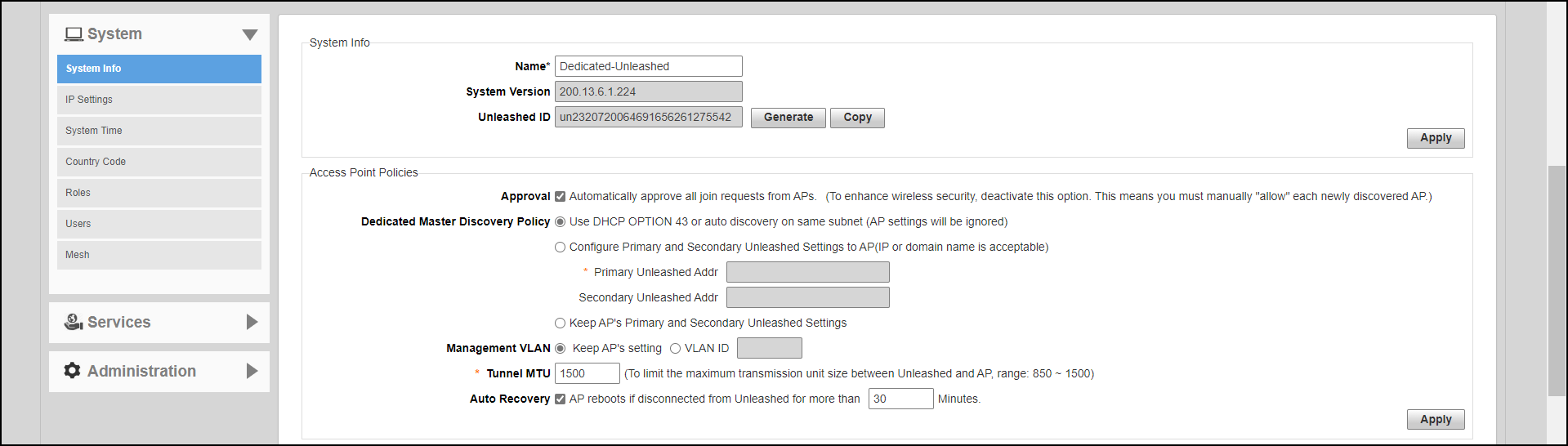

Configuring Global Access Point Policies

Select one of the following options:

• Use DHCP OPTION 43 or auto discovery on same subnet (AP settings will be ignored): Add the Option 43 setting under DHCP server in the Linux DHCP server.

  #Ruckus Option 43 configuration as below:
  option space ruckus_info;
  option ruckus_info.zdiplist code 3 = text;
  vendor-option-space ruckus_info;
  option ruckus_info.zdiplist "10.223.26.121";

• Configure Primary and Secondary Unleashed Settings to AP: Enter the IP addresses (or FQDNs) of the primary and secondary Dedicated Master units to which you want APs to join. APs will first attempt to join the primary Dedicated Master. If they cannot find or are unable to join the primary Dedicated Master, they will attempt to join the secondary Dedicated Master. If still unsuccessful, APs will stop attempting for a brief period of time, and then they will restart the joining process. They will repeat this process until they successfully join either the primary or secondary Dedicated Master.

• Keep AP's setting: Select this option if you want to preserve the Management VLAN settings as configured on the AP. Note that the Management VLAN on the AP is disabled by default.
• VLAN ID: Select this option and enter a valid VLAN ID to segment management traffic into the specified VLAN. Valid VLAN IDs are from 1 through 4094.
