T350SE
The RUCKUS T350se is a Wi-Fi 6
(802.11ax) Wi-Fi access point supporting dual-band concurrent 2x2:2 802.11ax (5GHz)
and
2x2:2 802.11ax (2.4GHz) for outdoor applications.
The T350se has an internal 120-degree sectorized antenna, an integrated single 1-Gbps Ethernet port, a DC port, an USB port, and 2 N-type ports to connect to an external antenna.
This section describes the physical features of the RUCKUS Unleashed T350SE AP.

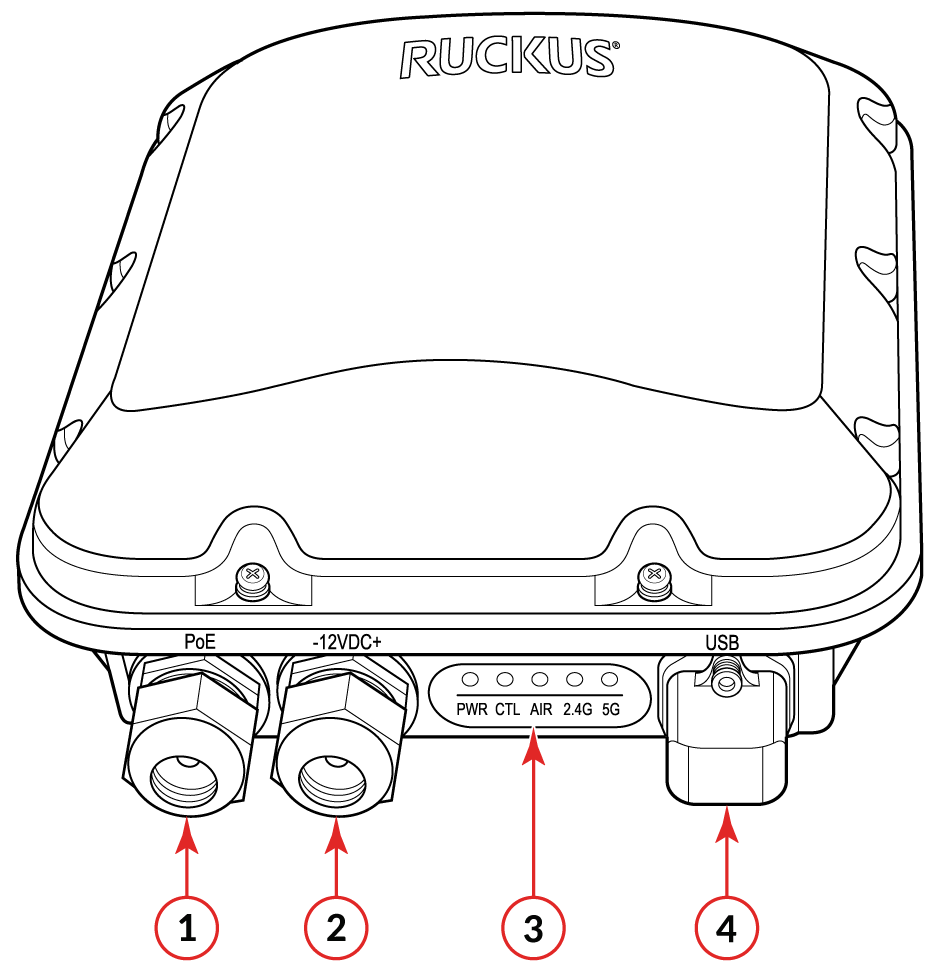

Front Panel
The T350SE AP features five LEDs on its front panel.
Front Panel LEDs
| LED | Status | Description |
|---|---|---|
| PWR | Off | No power connected. |
| Solid Red | Boot up in process. | |
| Flashing Green | System started, no routable IP address detected. | |
| Solid Green | Routable IP address received. | |
| CTL | Off | Unleashed Member AP. |
| Flashing Green (slow, every 2 seconds) | Network problem. Cannot contact Unleashed Master. | |
| Flashing Green (fast, 2x per second) | Receiving configuration or image upgrade. | |
| Solid Green | Unleashed Master AP. | |
| AIR | Off | No upstream mesh connection (Root AP). |
| Solid Green | Upstream mesh connection established (Mesh AP). | |
| Solid Red | Upstream mesh connection issue. | |
| 2.4G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 2.4 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 2.4 GHz radio. | |
| 5G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 5 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 5 GHz radio. | |
| Flashing Green | Radio is up, at least one downstream Mesh AP is connected to the 5G radio. |
