R750
The Unleashed R750 is a dual-band concurrent "Wi-Fi 6" (802.11ax) AP that supports
8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz).
The Unleashed R750 provides advanced 11ax features such as OFDMA, MU-MIMO, 11ax power save, and WPA3. It includes a USB port and a 2.5 GbE port that supports 802.3af, 802.3at and 802.3bt (40W) PoE, and one 1 GbE port (non-PoE).
Note: Dedicated Master mode is supported if an R750
AP is the Master AP in the Unleashed network.
This section describes the physical features of the RUCKUS Unleashed R750 AP.
Front Panel

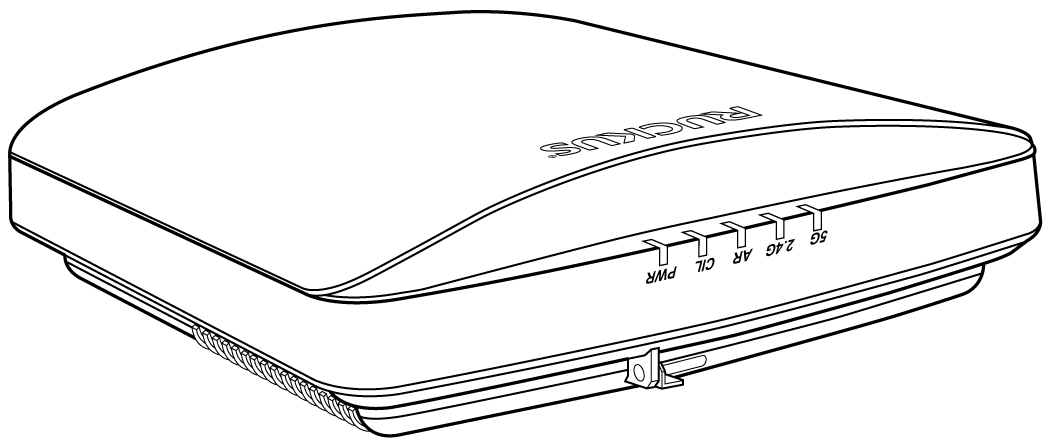

The R750 AP features five LEDs on its front panel.
Front Panel LEDs
| LED | Status | Description |
|---|---|---|
| PWR | Off | No power connected. |
| Solid Red | Boot up in process. | |
| Flashing Green | System started, no routable IP address detected. | |
| Solid Green | Routable IP address received. | |
| CTL | Off | Unleashed Member AP. |
| Flashing Green (slow, every 2 seconds) | Network problem. Cannot contact Unleashed Master. | |
| Flashing Green (fast, 2x per second) | Receiving configuration or image upgrade. | |
| Solid Green | Unleashed Master AP. | |
| AIR | Off | No upstream mesh connection (Root AP). |
| Solid Green | Upstream mesh connection established (Mesh AP). | |
| Solid Red | Upstream mesh connection issue. | |
| 2.4G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 2.4 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 2.4 GHz radio. | |
| 5G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 5 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 5 GHz radio. | |
| Flashing Green | Radio is up, at least one downstream Mesh AP is connected to the 5G radio. |
