T350 Family

The Unleashed T350 family provides 802.11ax "Wave 2" features, including MU-MIMO, in an outdoor access point.

This section describes the physical features of the RUCKUS Unleashed T310 family of dual-band 802.11ax Wave 2 Outdoor Access Points.

The T350 is available in four antenna variants:

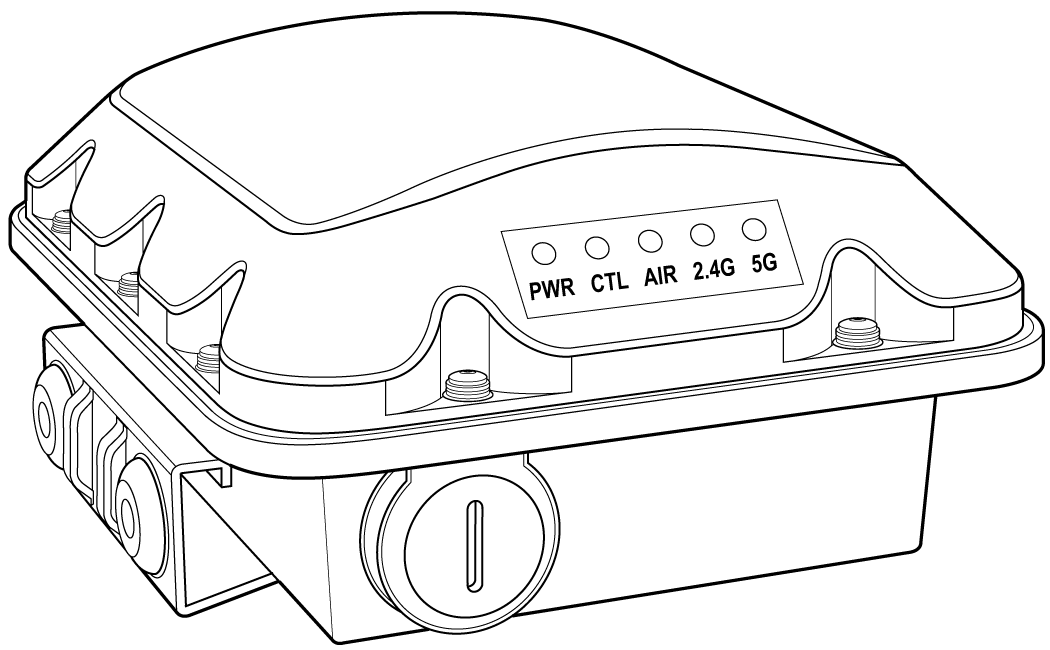

The T350 features five LEDs on its front panel.

LED	Status	Description
PWR	Off	No power connected.
	Solid Red	Boot up in process.
	Flashing Green	System started, no routable IP address detected.
	Solid Green	Routable IP address received.
CTL	Off	Unleashed Member AP.
	Flashing Green (slow, every 2 seconds)	Network problem. Cannot contact Unleashed Master.
	Flashing Green (fast, 2x per second)	Receiving configuration or image upgrade.
	Solid Green	Unleashed Master AP.
AIR	Off	No upstream mesh connection (Root AP).
	Solid Green	Upstream mesh connection established (Mesh AP).
	Solid Red	Upstream mesh connection issue.
2.4G	Off	Radio is down.
	Solid Amber	Radio is up, no clients are connected to the 2.4 GHz radio.
	Solid Green	Radio is up, at least one client is connected to the 2.4 GHz radio.
5G	Off	Radio is down.
	Solid Amber	Radio is up, no clients are connected to the 5 GHz radio.
	Solid Green	Radio is up, at least one client is connected to the 5 GHz radio.
	Flashing Green	Radio is up, at least one downstream Mesh AP is connected to the 5G radio.
