R850
The Unleashed R850 is a dual-band Wi-Fi 6 Indoor access point with 12 radio chains,
operating in 8x8:8 mode on the 5GHz band and in 4x4:4 mode on the 2.4GHz band, supporting
peak PHY rates of 4.8Gbps (5GHz) and 1.148Gbps (2.4GHz).
The R850 has one 5 Gbps PoE Ethernet port and one 1 Gbps port and a USB port for additional connectivity. The R850 will operate with PoH, uPOE and 802.3at power.
Note: Dedicated Master mode is supported if an R850
AP is the Master AP in the Unleashed network.
This section describes the physical features of the RUCKUS Unleashed R850 AP.
Front Panel

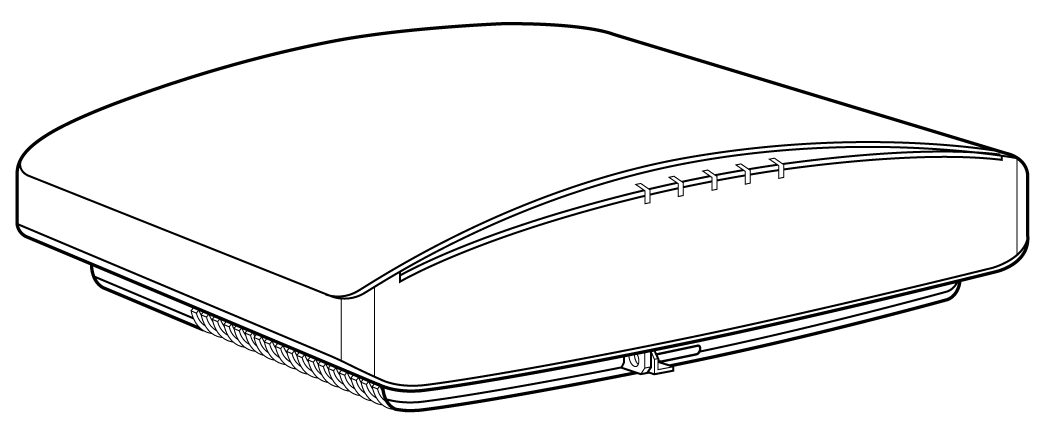

The R850 AP features five LEDs on its front panel.
Front Panel LEDs
| LED | Status | Description |
|---|---|---|
| PWR | Off | No power connected. |
| Solid Red | Boot up in process. | |
| Flashing Green | System started, no routable IP address detected. | |
| Solid Green | Routable IP address received. | |
| CTL | Off | Unleashed Member AP. |
| Flashing Green (slow, every 2 seconds) | Network problem. Cannot contact Unleashed Master. | |
| Flashing Green (fast, 2x per second) | Receiving configuration or image upgrade. | |
| Solid Green | Unleashed Master AP. | |
| AIR | Off | No upstream mesh connection (Root AP). |
| Solid Green | Upstream mesh connection established (Mesh AP). | |
| Solid Red | Upstream mesh connection issue. | |
| 2.4G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 2.4 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 2.4 GHz radio. | |
| 5G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 5 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 5 GHz radio. | |
| Flashing Green | Radio is up, at least one downstream Mesh AP is connected to the 5G radio. |
