Unsupported Topologies for Zero-Touch

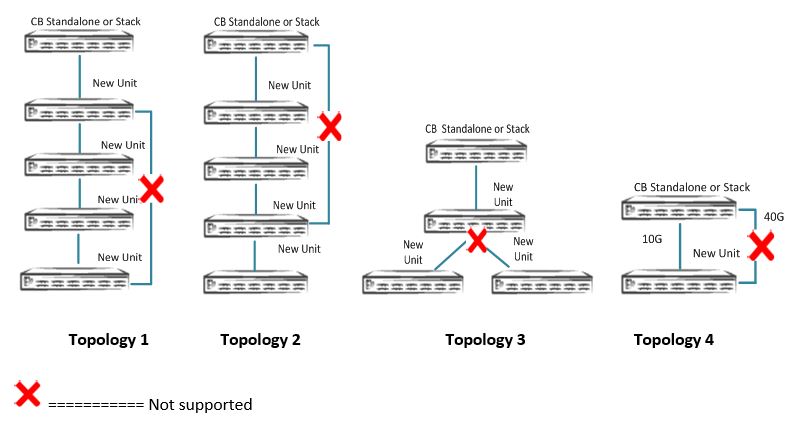

Unsupported Zero-Touch Topologies

Unsupported Topology 1: A set of new units cannot be discovered if there is a loop between PE units.

Unsupported Topology 2: A set of new units cannot be discovered if there is an improper loop between PEs and the CB.

Unsupported Topology 3: More than one unit cannot be added directly to an edge PE.

Unsupported Topology 4: A single new unit in a ring topology is not supported.

Note: Unsupported Topology 1 is a special case for SPX interactive-setup that is handled as a part of the deployment scenario.
