Wi-Fi Networks Configuration Overview

The Wi-Fi Networks page provides tools for managing all aspects of your RUCKUS Unleashed Wi-Fi networks.

From the main menu, select Wi-Fi > Wi-Fi Networks > Wi-Fi Network List. The Wi-Fi Network window is displayed.

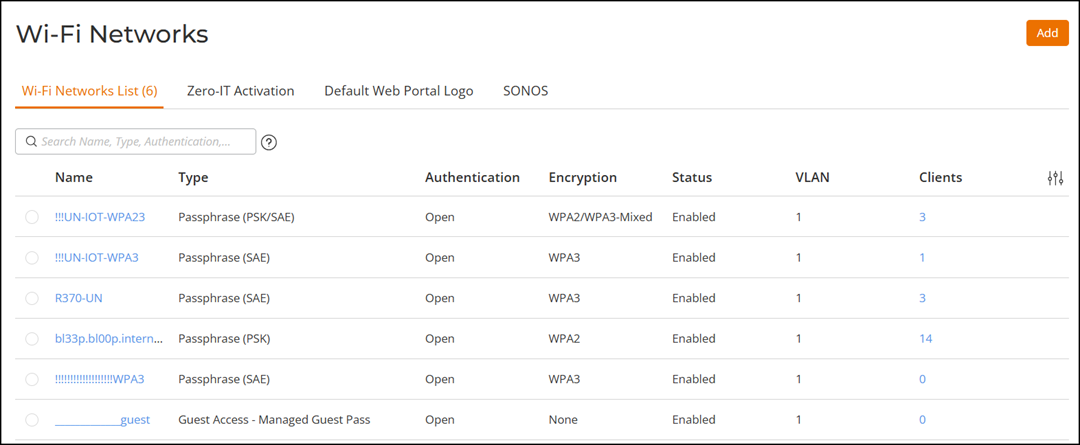

Wi-Fi Networks Window

You can view the following information and options from the Wi-Fi Network List page:

Name Name of the Wi-Fi network. This is a sortable field. Click a specific Wi-Fi network name to view the Overview page.
Type Network usage type (Standard, Guest Access, or Hotspot service)
Authentication Authentication method used for this Wi-Fi network (Open, 802.1X EAP, or MAC Address)
Encryption Encryption Method used for this Wi-Fi network (WPA2, WPA3, WPA2/WPA3-Mixed, OWE, or None)
Status Status of the Wi-Fi network (enabled or disabled)
VLAN VLAN ID associated with this Wi-Fi network
Clients Number of clients currently connected to this Wi-Fi network. Click on the number count to view additional details.

You can customize which fields must appear in the Wi-Fi Networks table by clicking the icon and selecting or deselecting the desired column names. Optionally, you can click Reset to default to have all columns appear in the Wi-Fi Networks table.

You can search the list of Wi-Fi networks by entering a complete or partial (at least three characters) Wi-Fi network name, type, authentication, encryption, or status in the search field; all matching entries are displayed. You can sort the list ofWi-Fi networks by clicking the associated column header.

Parent topic: WLAN Configuration
