H670

The H670 is Tri-Band 802.11be Wi-Fi 7 wall-mount Access Point.

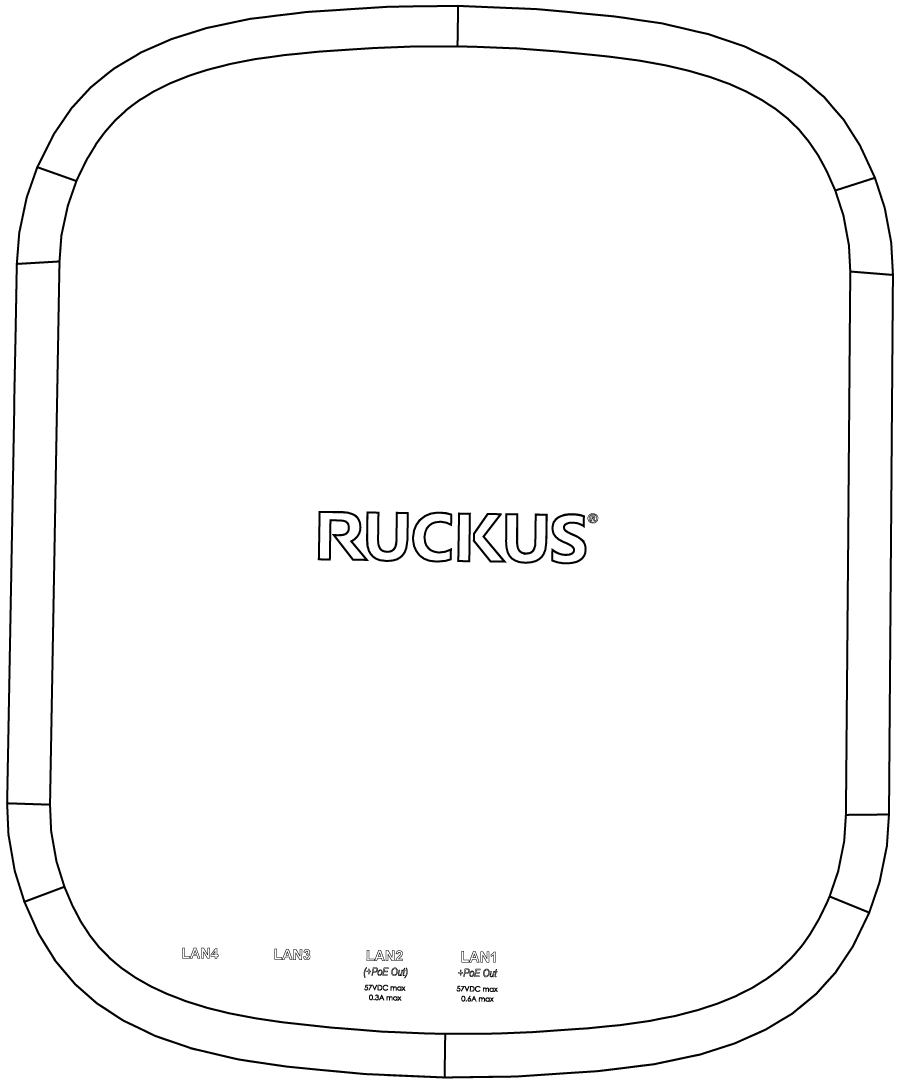

This section describes the physical features of the RUCKUS Unleashed H670 Access Point.

The H670 AP features a LED on its rear panel. (LED is concealed when mounted.)

Color	Light Pattern	Description
Red	Solid Red	AP is determining power mode
	Slow Blinking Red	AP is in 802.3af power mode
	Blinking between Red and Green	AP is undergoing factory reset
	Blinking between Red and Amber	AP is proceeding with a Factory Reset to Recovery Mode
Amber	Solid Amber	AP has sufficient power and is now booting up
	Blinking Amber	System network gateway is lost
	Slow Blinking Amber	AP system controller interface is lost
	Fast Blinking Amber	AP is being loaded with a firmware or configuration update
Green	Solid Green	AP WLANs, services, and controller management are operational
	Solid Green without Advanced Mode or Slow Blinking Green with Advanced Mode	AP WLAN has at least one client connected
	Solid Green without Advanced Mode or Slow Blinking between Green and Amber with Advanced Mode	AP WLAN has at least one client connected and mesh networking is enabled
No Color	OFF	No power Controller connectivity is lost The LED has been disabled via the controller
