The RUCKUS R575 is a ceiling-mounted,
Wi‑Fi 7 tri-band-concurrent indoor access point delivering six spatial streams (2x2:2
across
2.4 GHz, 5 GHz, and 6 GHz). Dual 2.5 Gbps Ethernet uplink ports deliver fast, reliable
wired
backhaul and can be link aggregated (LAG) to achieve a combined 5 Gbps uplink, unlocking
maximum throughput while working seamlessly with your existing multi-gigabit wired
infrastructure. The R575 fits easily into existing network power environments without
requiring infrastructure upgrades. Maximum power consumption remains within the
IEEE 802.3at
PoE range, even when all AP capabilities are enabled.
This section describes the physical features of
the RUCKUS Unleashed R575 AP.
Unleashed R575 Access
Point
Front Panel
The R575 AP features a single system
LED on its front panel that can display three colors (Red, Amber, and Green).

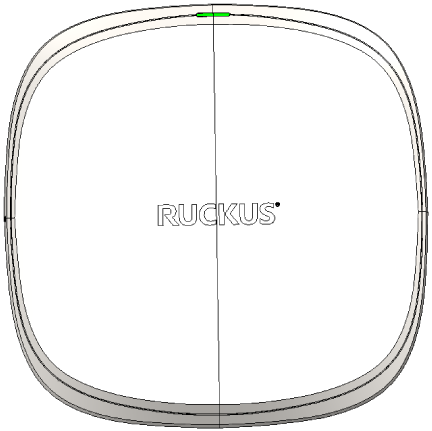

R575 AP Front Panel
LED
| State Base Light |
Status |
Description |
| Power Negotiation Mode (Red) |
Off |
No power connected. |
| Slow Blinking Red (The light is on
for 0.5 seconds and off for 1.5 seconds)
|
AP is on and in IEEE 802.3af low-power mode. |
| Solid Red |
AP is on in full-power mode and boot-up is in process. |
| Operation Preparation State (Amber) |
Blinking Amber (The light is on
for 1 second and off for 1 second)
|
One of the following:- System is in Configure.Me or Zero Touch Mesh (ZTM)
state.
- Management Gateway is lost.
|
| Solid Amber |
AP has successfully obtained an IP address, either
through DHCP or a static IP assignment. |
| Fast Blinking Amber (The light is on
for 0.25 seconds and off for 0.75 seconds.
|
AP is being loaded with a configuration or firmware
update. |
| Slow Blinking Amber (The light is on
for 0.5 seconds and off for 1.5 seconds)
|
Connection to the system controller is lost. |
| Service State (Green) |
Solid
Green |
AP WLAN services and controller management are operational. |
| AP WLAN has at least one client connected. |
| AP WLAN has at least one client connected and Mesh networking is
established. |
| Exception State |
Blinking between Red and Green |
AP is undergoing a Factory Reset. |
| Blinking between Red and Amber |
AP is proceeding with a Factory Reset to Recovery Mode. |
| Blinking Red/Off/Green/Off/Amber/Off |
Controller is not reachable. |
