R650
The RUCKUS R650 is a mid-range Wi-Fi 6
(IEEE 802.11 ax) dual-band, dual-concurrent indoor access point that supports six
spatial
streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The AP provides one 2.5Gbps PoE+ port
and one
1Gbps Ethernet port, and uses BeamFlex+™ adaptive antenna technology.

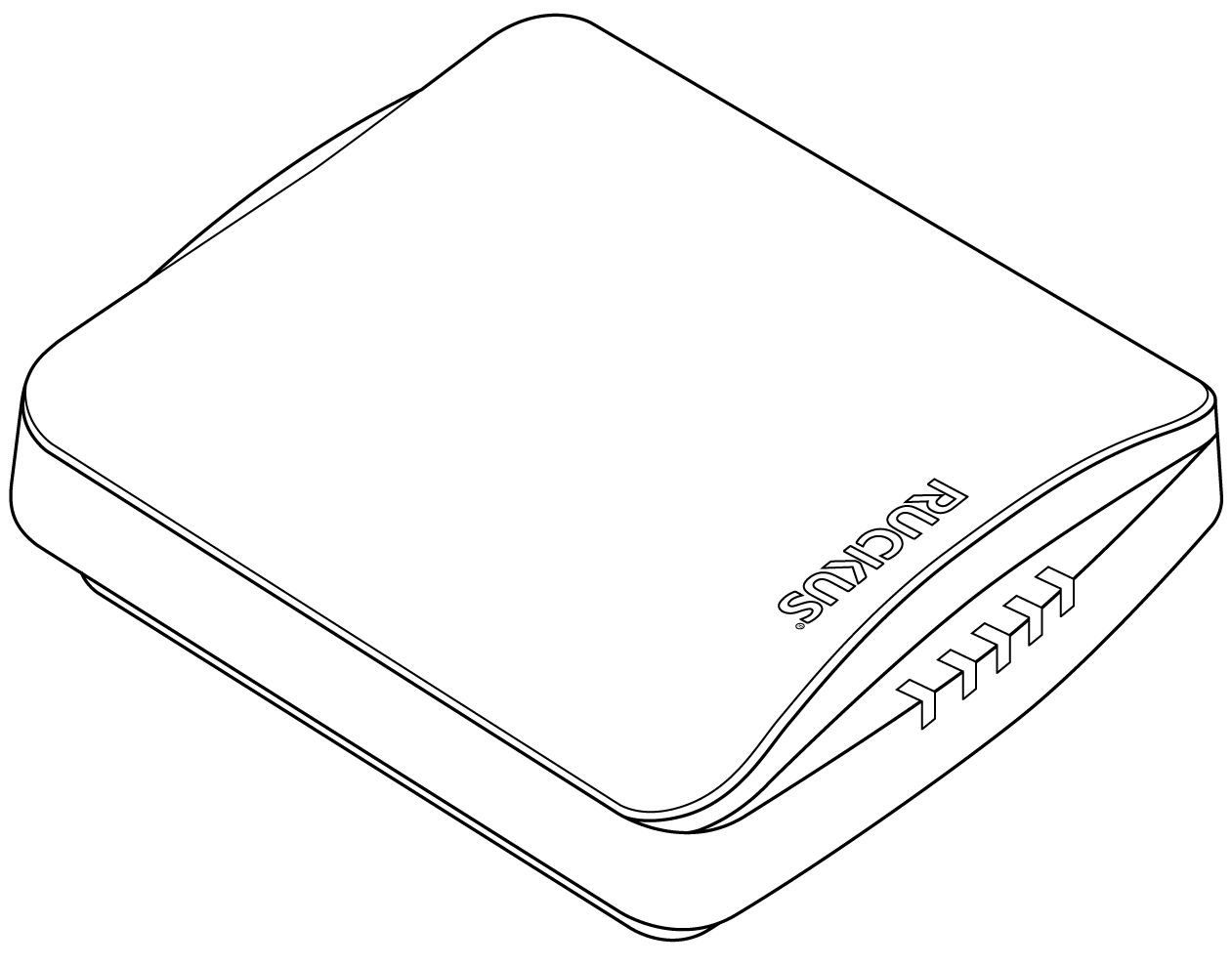

This section describes the physical features of the RUCKUS Unleashed R650 AP.
Front Panel
The R650 AP features five LEDs on its front panel.
Front Panel LEDs
| LED | Status | Description |
|---|---|---|
| PWR | Off | No power connected. |
| Solid Red | Boot up in process. | |
| Flashing Green | System started, no routable IP address detected. | |
| Solid Green | Routable IP address received. | |
| CTL | Off | Unleashed Member AP. |
| Flashing Green (slow, every 2 seconds) | Network problem. Cannot contact Unleashed Master. | |
| Flashing Green (fast, 2x per second) | Receiving configuration or image upgrade. | |
| Solid Green | Unleashed Master AP. | |
| AIR | Off | No upstream mesh connection (Root AP). |
| Solid Green | Upstream mesh connection established (Mesh AP). | |
| Solid Red | Upstream mesh connection issue. | |
| 2.4G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 2.4 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 2.4 GHz radio. | |
| 5G | Off | Radio is down. |
| Solid Amber | Radio is up, no clients are connected to the 5 GHz radio. | |
| Solid Green | Radio is up, at least one client is connected to the 5 GHz radio. | |
| Flashing Green | Radio is up, at least one downstream Mesh AP is connected to the 5G radio. |
