Navigating the Unleashed Web Interface

The RUCKUS Unleashed dashboard is the primary interface used for monitoring and configuring all aspects of your network.

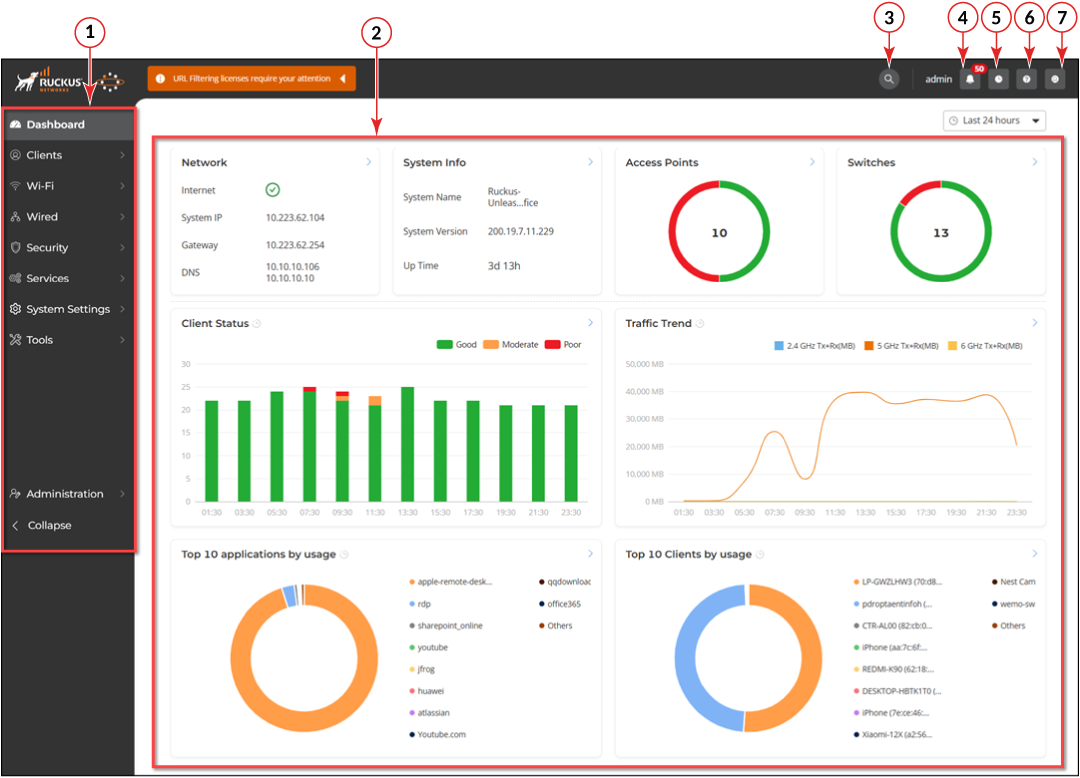

Unleashed Web Interface Home Page

Unleashed Web Interface Elements

Number	Name	Description
1	Main menu	Use the navigation bar to navigate through RUCKUS Unleashed web interface that include: Dashboard Clients Wi-Fi Wired Security Services System Settings Tools Administration
2	Content area	When you click an item on the navigation bar, the related information displays in the content area. By default, the following information is displayed: Network System Info Access Points Switches Client Status Traffic Trend Top 10 applications by usage Top 10 Clients by usage
3	(Search)	Allows you to search for menu names using keywords (supports partial matches) and navigate directly to the corresponding pages. Click the icon to open the search field, enter keywords, and select a menu item from the suggested results to navigate to the page.
4	(Alarms)	Indicates alarm notifications along with alarm count.
5	(Events)	Indicates events along with the time.
6	(Online Help)	Click to view the Online Help documentation for RUCKUS Unleashed.
7	(User)	Allows you to change the password and log out of the Unleashed web interface.
