AV profiles are configurations associated
with switch ports and AV traffic on ICX switches. You can view and manage AV profiles
configured on ICX switches, including profile details, associated templates, and port-level
assignments.
The AV Profiles interface provides two
sub-tabs: AV
profiles and AV Profile Template (Shared).

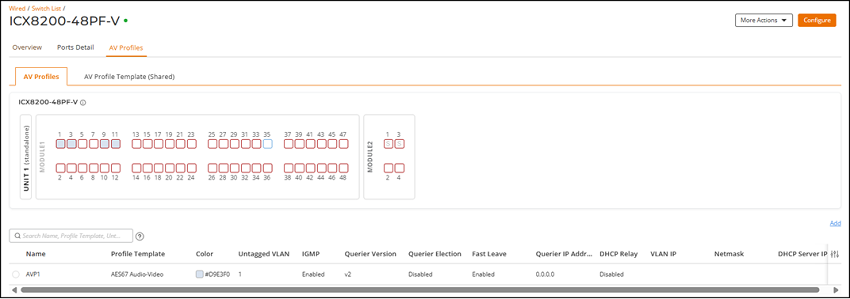

AV Profiles
The AV
profiles sub-tab includes:
A port diagram that displays the physical layout of the switch, including modules
and port numbering. Ports associated with an AV profile are indicated using
color.
A table that displays information about configured AV profiles.
The following columns are displayed:
Name
Displays the name of the AV profile.
Profile
Template
Displays the name of the AV profile template.
Color
Displays the color of the AV profile shown in the port diagram in the
AV Profiles tab.
Untagged
VLAN
Displays the access VLAN associated with the ICX switch.
IGMP
Displays the Internet Group Management Protocol (IGMP) settings
(Enabled or
Disabled).
Querier
Version
Displays the version of IGMP (V2 or
V3).
Querier
Election
Displays whether Querier Election is enabled and the corresponding
Querier IP address.
Note: IGMP and Querier Version settings are pre-configured for the
built-in templates. You can configure these settings only for custom
templates. For the Data AV profile template, the IGMP setting is
disabled.
Querier IP Address
Displays the configured Querier IP address.
Fast
Leave
Displays whether Fast Leave is enabled. This field is displayed as
disabled when Querier Election is enabled.
DHCP Relay
Displays whether Dynamic Host Configuration Protocol (DHCP) Relay is
enabled.
VLAN
IP
Displays the IP address of the VLAN.
Netmask
Displays the DHCP subnet mask value.
DHCP Server
IP
Displays the IP address of the DHCP server to which the relay agent
forwards DHCP requests from clients on its network.
You can use the Search option to display
only the table entries matching the specified Profile Name, Profile Template,
Untagged VLAN,
IGMP,
Querier
Version, Querier Election, Querier IP Address,
Fast Leave,
DHCP Relay,
VLAN IP,
Netmask, or
DHCP Server IP
address; enter a minimum of two characters. Click Clear Filters to remove
the applied filters.
You can customize which fields appear in
the AV Profiles table by clicking the icon and
selecting or deselecting the desired column names. Optionally, you can click
Reset to default to restore the default subset of columns.
You can sort the list by clicking the associated column header.
The AV Profile Template
(Shared) tab displays the list of available AV profile templates. The
following columns are displayed:
Name
Displays the name of the AV profile template. The following are the
built-in AV templates:
AES67
Audio-Video: Use this template to connect the
ICX switch to the AES67 audio devices and their controller.
AES67 is a standard that transmits high-quality audio over IP
networks.
Dante
Audio-Video: Use this template to connect the
ICX switch to the Dante audio devices and their controller.
Dante is a technology that transmits video and multiple channels
of audio over Ethernet cables.
NDI5-Video: Use this template to
connect the ICX switch to the video systems. Network Device
Interface (NDI5) is a standard that allows video systems to
communicate with one another over IP.
Q_SYS-Video: Use this template to
connect the ICX switch to the IP audio Q-SYS devices and their
controller. Q_SYS is a cloud platform that integrates audio,
video, and control processing in one system.
Video: Use this template to connect
the ICX switch to the IP video devices and their
controller.
Voice: Use this template to connect the ICX
switch to VoIP phones or high-definition voice streaming
applications.
Data: Use this template to connect the ICX
switch to other network devices as well as computers.
Custom: Use this template to build your custom
AV profile template.
Description
Displays the description of the AV profile template.
PTPv2
Displays the Precision Time Protocol (PTP) v2 setting (Enabled or
Disabled).
You can use the Search option to
display only the table entries matching the specified Name and
Description; enter a minimum of two characters. Click
Clear
Filters to remove the applied filters.
You can customize which fields
appear in the AV Profile Template (Shared) table by clicking the
icon and selecting or deselecting the desired column names. Optionally, you can
click Reset to default to restore the default subset of
columns. You can sort the list by clicking the associated column header.
You can edit, clone, or delete the custom
AV profile templates using the Edit, Clone, or Delete options. Only the clone operation is allowed for the
system-defined AV profile templates.
