Viewing the Script Execution Summary

After an AP CLI script is executed on-demand or as scheduled, you can view the details in the History tab.
  1. From the main menu, click Monitor.
  2. Under Troubleshooting & Diagnostics, hover over the Scripts, and click Patch/Diagnostic Scripts.
  3. Select the AP CLI Scripts tab.
  4. From the domain tree, choose the domain in which the AP is present.
    The History tab displays the list of scripts that were executed.
  5. From the AP CLI Scripts tab, select the script from the list of scripts.
  6. Select a script from the History tab, and click View Execution Summary.
    The Script Execution Summary displays the script name, the number of successful, failed, and skipped APs, the start and end times of the execution process, the MAC address of the AP, the AP and zone names, the execution status, and the last execution line.

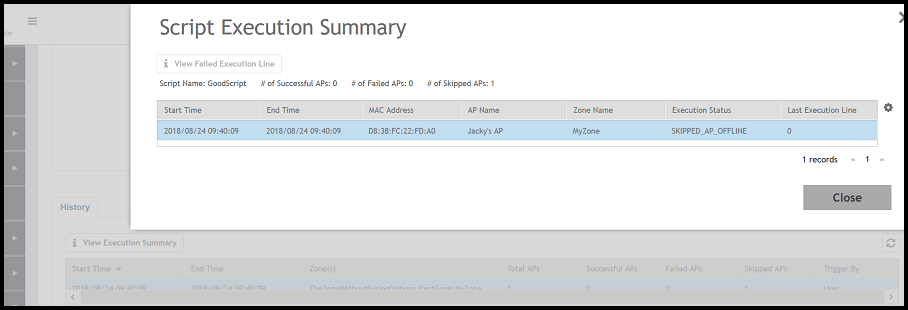

    Script Execution Summary

  7. Click Close.
Parent topic: AP CLI Scripts
