Creating a Traffic Class Profile

A traffic class allows you to classify traffic according to a set of criteria that you define, such as source and destination IP addresses.
To create a Traffic Class Profile, perform the following:
  1. Click Security > Access Control > Traffic Classes.
  2. Select the zone from the system tree and click Create.
    This displays Create Traffic Class Profile page.

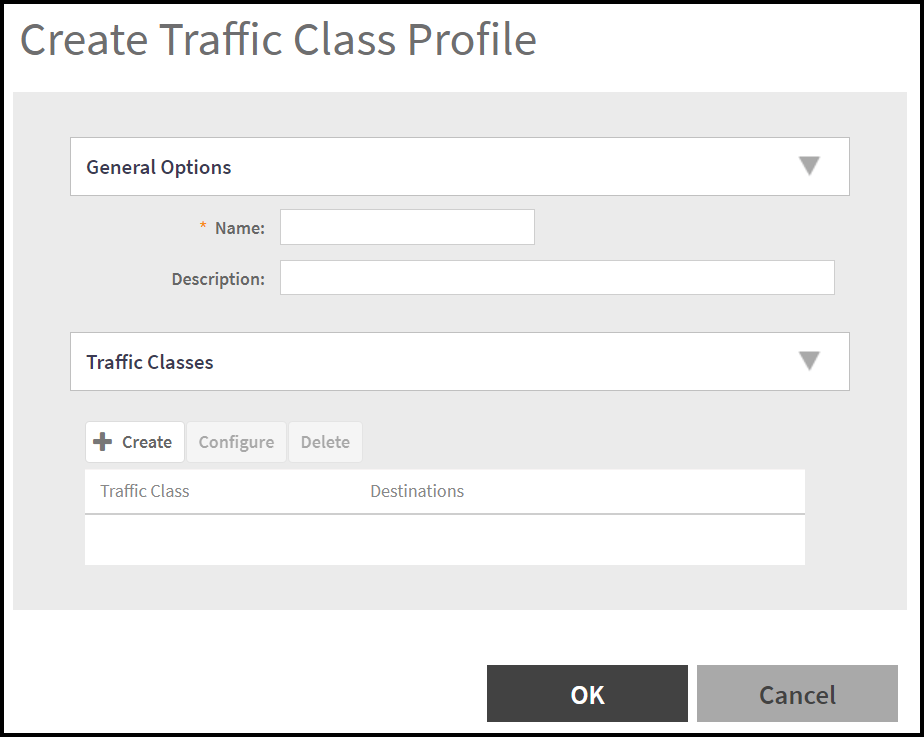

    Create Traffic Class Profile

  3. General Options
    1. Name: Enter a name to identify the traffic class profile.
    2. Description: Enter a short description for traffic class profile.
  4. Traffic Classes
    1. Click Create. This displays Destination Addresses window.

      Enter a name to identify the destination address.

    2. Destination Addresses - Access Control Rule Entry: Enter an access control rule as shown in the format section under the field and click Add. The access control address is displayed in the Access Control Rule Entry table.

      Import CSV Format: Click this field to import a CSV format file from your local computer.

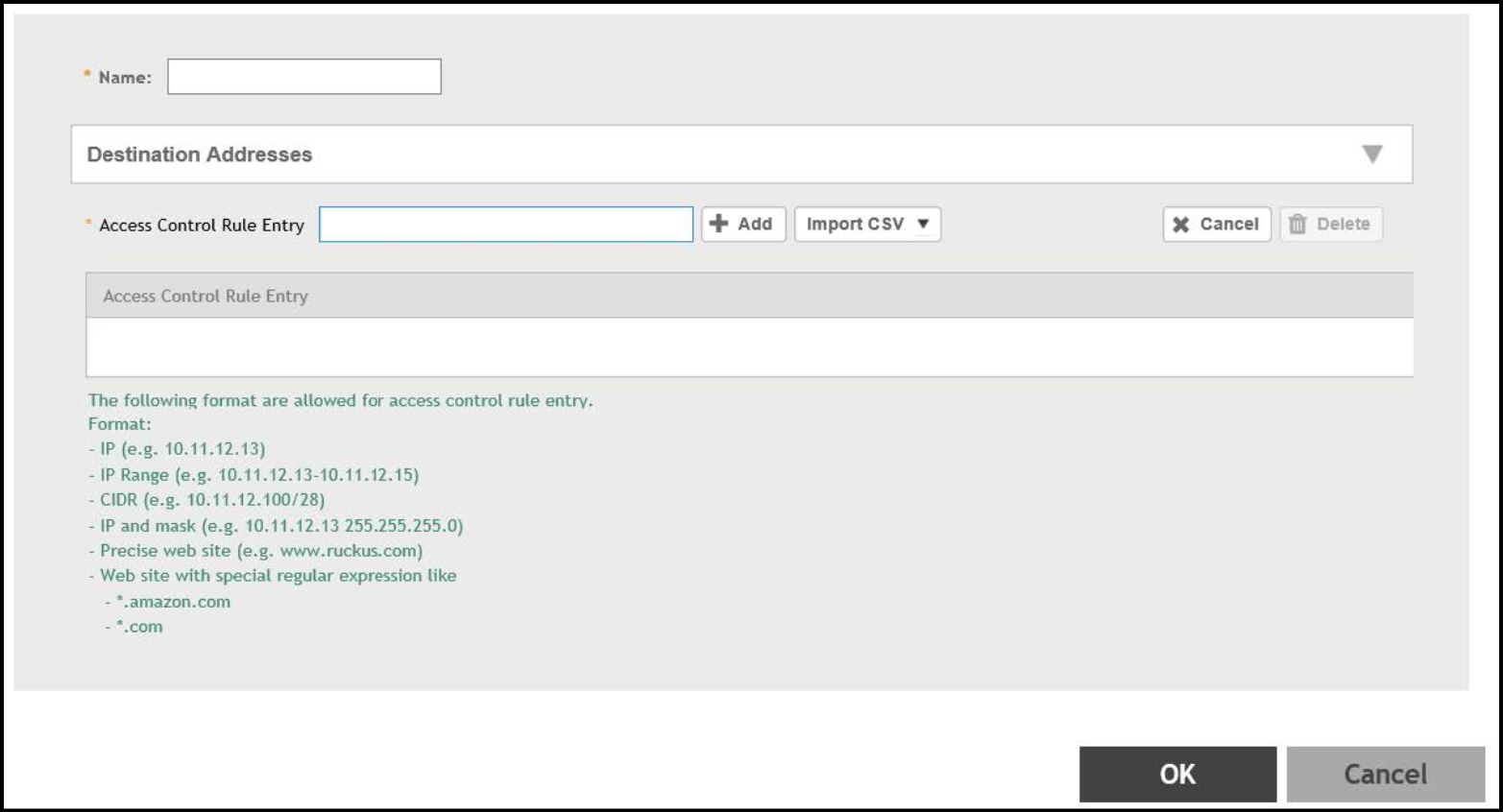

    Destination Addresses

  5. Click OK.
    Note: Only four traffic classes can be added in a single Traffic Class profile.
You have created a Traffic Class Profile.
Note: The IP destination is reachable only when the IP is not part of traffic class but is present under Split Tunnel. The Split Tunnel policy is effective only when both Split Tunnel and Traffic Class features are enabled together.
